LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

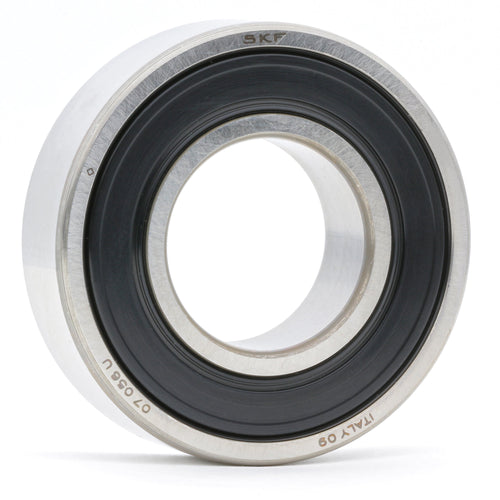

- Produktnamn: 6003-2rsltn9/HC5C3WT SKF Hybrid Ball Bearing 17x35x10
- Tillverkare: SKF
- Tillverkarens artikelnummer: 6003-2RSLTN9/HC5C3WT
- Streckkod: 7316572070734
Efterbeteckningar
-
2RSL
Nitrile rubber (NBR) low friction seal on both sides of the bearing that protects and seals against dust and smaller particles.
-
TN9
Holder made of fiberglass reinforced PA66, ball centered.
-
HC5
Ceramic bearing balls made of silicon nitride (Si3N4).
-
C3
Larger radial clearance than normal.
-
WT
Grease with polyurea thickener and consistency 2–3 according to the NLGI scale, for the temperature range –40 to +160 °C (normal degree of filling).
Ceramic hybrid ball bearings 6003-2rsltn9/hc5c3wt from the manufacturer SKF with dimensions 17x35x10 mm and with Ceramic bearing balls and low -free ball holders as well as rubber seals.
The ball bearing has a larger stock game than normal (C3) is filled with fat for wide temperature range and high performance (WT).
✔ Maintenance -free
✔ Extended life
✔ Ceramic bearing balls
✔ Retains the lubrication fat
✔ Low -free ball holder
✔ High quality and performance
✔ Can handle temperatures between -40 ° C to +160 ° C
✔ Protects and seals against water, dust and smaller particles
| Specification | |
| Product | 6003-2rsltn9/HC5C3WT SKF Ball bearings 17x35x10 |
| Manufacturer | SKF |
| Manufacturer's article number |
6003-2rsltn9/HC5C3WT |
| Law game | C3 - Larger stock game than normal |
| Temperature range | -40 ° C to +160 ° C. |
| Loading | Radial and axial loads in both directions |
| Border speed | r/min |
| Sustainability Dynamically (C) | kn |
| Sustainability Statically (C0) | kn |
| Weight | g |
| Dimensions | |
| Inner diameter (d) | 17 mm |
| Outer diameter (D) | 35 mm |
| Width (B) | 10 mm |
 |
|
| Post -designation (suffix) | |
| 2RSL | The ball bearing has a low -free seal of NBR rubber on both sides of the layer that protects and seals against dust and smaller particles |
| TN9 | Injection molded snap holder of fiberglass reinforced polyamide 6.6, centered on the balls |
| HC5 | Ceramic stock balls made in silica (si3n4) |
| C3 | Larger radial gap than normal |
| Wt | Fat with thickening agent polyurea and texture 2–3 according to the Nlgiskalan, for the temperature range –40 to +160 ° C (normal filling rate) |
| Material | |
| Inner ring | Layer |
| Outer ring | Layer |
| Balls | Siliconitrid (si3n4) |
| Ball holder | Glass -fiber reinforced polyamide 6.6 |
| Sealing Low friction High speed Detention of fat Protection against dust Protection against water Static Dynamic High pressure |
Nitril rubber (NBR) Very good ✔✔ Excellent ✔✔✔ Excellent ✔✔✔ Very good ✔✔ Acceptable ✔ Acceptable ✔ Acceptable ✔ |
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
