LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation
- Produktnamn: 6203 zz.nr.c3 Ball Bearing with locking ring 17x40x12
- Tillverkare: Generic
- Tillverkarens artikelnummer: 6203-2ZNR
Efterbeteckningar
-
NR
Flange ring groove in the outer ring, with matching flange ring.

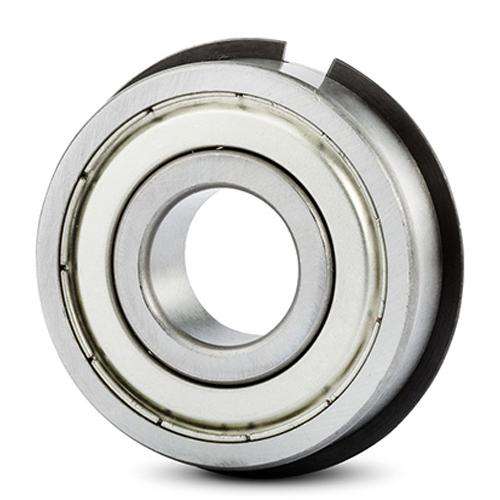

Ball bearing 6203-2ZNR with locking ring on the outer ring from the manufacturer SKF with dimensions 17x40x12 mm. The K ball bearing has frictionless protective plates on both sides of the bearing.
✔ Maintenance free
✔ Extended Lifespan
✔ Retains the lubricating grease
✔ Friction-free protective plates
✔ High quality and performance
| Specification | |
| Product | 6203-2ZNR SKF Ball Bearing with Locking Ring 17x40x12 |
| Manufacturer | SKF |
| Manufacturer's article number |
6203-2ZNR |
| Stock game | CN - Normal (Default) |
| Temperature range | -20°C to +120°C |
| Loading | Radial and axial loads in both directions |
| Reference speed | rpm |
| Limit speed | rpm |
| Load capacity Dynamic (C) | kN |
| Bearing capacity Static (C0) | kN |
| Weight | g |
| Included | Lock ring SP 40 |
| Dimensions | |
| Inner diameter ( d ) | 17 mm |
| Outer diameter ( D ) | 40 mm |
| Width (B ) | 12 mm |
| Width of locking ring (f) | 1.12 mm |
| Width of circlip groove (b) | 1.35 mm |
 |
|
| Surname (Suffix) | |
| 2Z | The ball bearing has protective plates on both sides of the bearing |
| NO | Flange ring groove in the outer ring, with matching flange ring |
| Material | |
| Inner ring | Steel |
| Outer ring | Steel |
| Bullets | Steel |
| Ball holder | Plate |
| Lock ring | Steel |
| Enclosure (seal) Low Friction High RPM Retention of Fat Protection against Dust Protection against Water Static Dynamic High pressure |
Plate Excellent ✔ ✔ ✔ Excellent ✔ ✔ ✔ Acceptable ✔ Acceptable ✔ Not recommended Not recommended Not recommended |
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Ball bearing 6203-2ZNR with locking ring on the outer ring from the manufacturer SKF with dimensions 17x40x12 mm. The K ball bearing has frictionless protective plates on both sides of the bearing.
✔ Maintenance free
✔ Extended Lifespan
✔ Retains the lubricating grease
✔ Friction-free protective plates
✔ High quality and performance
| Specification | |
| Product | 6203-2ZNR SKF Ball Bearing with Locking Ring 17x40x12 |
| Manufacturer | SKF |
| Manufacturer's article number |
6203-2ZNR |
| Stock game | CN - Normal (Default) |
| Temperature range | -20°C to +120°C |
| Loading | Radial and axial loads in both directions |
| Reference speed | rpm |
| Limit speed | rpm |
| Load capacity Dynamic (C) | kN |
| Bearing capacity Static (C0) | kN |
| Weight | g |
| Included | Lock ring SP 40 |
| Dimensions | |
| Inner diameter ( d ) | 17 mm |
| Outer diameter ( D ) | 40 mm |
| Width (B ) | 12 mm |
| Width of locking ring (f) | 1.12 mm |
| Width of circlip groove (b) | 1.35 mm |
|
|
|
| Surname (Suffix) | |
| 2Z | The ball bearing has protective plates on both sides of the bearing |
| NO | Flange ring groove in the outer ring, with matching flange ring |
| Material | |
| Inner ring | Steel |
| Outer ring | Steel |
| Bullets | Steel |
| Ball holder | Plate |
| Lock ring | Steel |
| Enclosure (seal) Low Friction High RPM Retention of Fat Protection against Dust Protection against Water Static Dynamic High pressure |
Plate Excellent ✔ ✔ ✔ Excellent ✔ ✔ ✔ Acceptable ✔ Acceptable ✔ Not recommended Not recommended Not recommended |
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
