LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

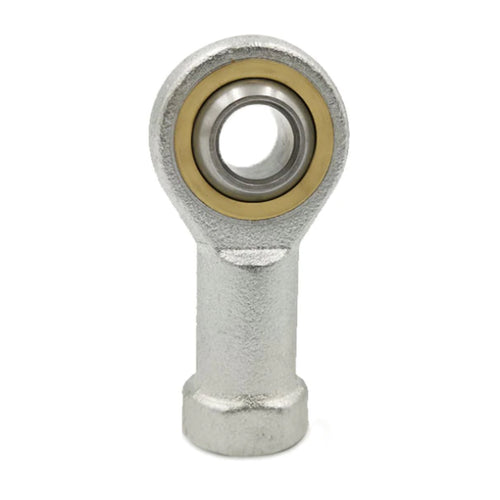

- Produktnamn: Been 12-20-501 Durbal Link Head - 12x32x16 (M12)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: Been 12-20-501
Link Head Befn 12-20-501 for Axlet diameter 12 mm with internal right thread (M12) from the manufacturer Durbal.
| Product | Been 12-20-501 Durbal Link Head 12x32x16 (M12) |
| Manufacturer | DURBAL |
| Manufacturer's article number | Been 12 - 20 - 501 |
| Axle diameter | 12 mm |
| Thread | M12 - Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Brass - steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Temperature range | -40 ° C to +110 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 7 kn |
| Sustainability Statically (C0) |
17.5 kn |
| Material | House -tempered steel, surface dip galvanized Outer ring - brass with lubrication tracks LED ball -hard chrome layer steel |
| Weight | 100 g |
| Spherical Plain Bearings | |
| Technical specification | DOWNLOAD |
Dimensions
| Axle diameter (d) | 12 mm |
| Outer diameter (D2) | 32 mm |
| Width (B) | 16 mm |
| Length (L4) | 66 mm |
| Thread length (l3) | 22 mm |
| Thread (G) | M12 |
| C1 | 12 mm |
| dk | 22.17 mm |
| H1 | 50 mm |
| I7 | 16 mm |
Alternative terms
Been 12-20-501, Befn12-20-501, Befn-12-20-501, Befn1220501
Advantages
- Temperature range -40 ° C to +110 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Befn 12-20-501 for Axlet diameter 12 mm with internal right thread (M12) from the manufacturer Durbal.
| Product | Been 12-20-501 Durbal Link Head 12x32x16 (M12) |
| Manufacturer | DURBAL |
| Manufacturer's article number | Been 12 - 20 - 501 |
| Axle diameter | 12 mm |
| Thread | M12 - Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Brass - steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Temperature range | -40 ° C to +110 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 7 kn |
| Sustainability Statically (C0) |
17.5 kn |
| Material | House -tempered steel, surface dip galvanized Outer ring - brass with lubrication tracks LED ball -hard chrome layer steel |
| Weight | 100 g |
| Spherical Plain Bearings | |
| Technical specification | DOWNLOAD |
Dimensions
| Axle diameter (d) | 12 mm |
| Outer diameter (D2) | 32 mm |
| Width (B) | 16 mm |
| Length (L4) | 66 mm |
| Thread length (l3) | 22 mm |
| Thread (G) | M12 |
| C1 | 12 mm |
| dk | 22.17 mm |
| H1 | 50 mm |
| I7 | 16 mm |
Alternative terms
Been 12-20-501, Befn12-20-501, Befn-12-20-501, Befn1220501
Advantages
- Temperature range -40 ° C to +110 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
