LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

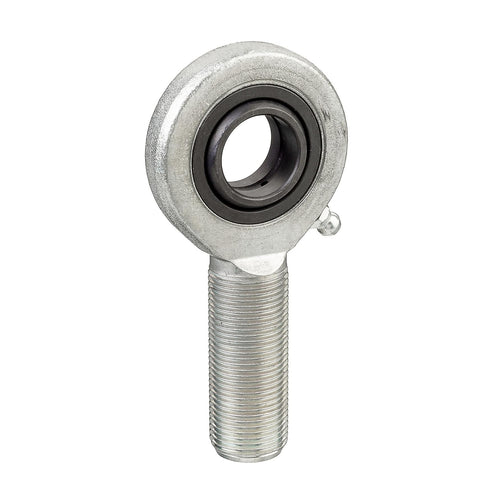

- Produktnamn: Dal 25 es-2rs Durbal Link Head - 25x64x20 (M24x2)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: Dal 25 es-2rs
Link Head Dal 25 ES-2RS for Axlet diameter 25 mm with external left (M24x2) from the manufacturer Durbal.
Link Head Dal 25 ES-2RS for Axlet diameter 25 mm with external left (M24x2) from the manufacturer Durbal.
| Product | Dal 25 es-2rs Durbal Link Head 1x64x20 (M24x2) |
| Manufacturer | DURBAL |
| Manufacturer's article number | Dal 25 es-2rs |
| Axle diameter | 25 mm |
| Thread | M24x2 - external left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer |
| Temperature range | -40 ° C to +120 ° C. |
| The angle of inclination | 7° |
| Sustainability Dynamically (C) | 36.5 kn |
| Sustainability Statically (C0) |
66.4 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 560 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal on both sides of the layer.
Dimensions
| Axle diameter (d) | 25 mm |
| Outer diameter (D2) | 64 mm |
| Width (B) | 20 mm |
| Length (L2) | 126 mm |
| Thread length (L1) | 53 mm |
| Thread (G) | M24x2 |
| C1 | 17 mm |
| h | 94 mm |
| I7 | 32 mm |
Alternative terms
Dal 25 es-2rs, dsal25 es-2rs, dsal-25 es-2rs
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Dal 25 ES-2RS for Axlet diameter 25 mm with external left (M24x2) from the manufacturer Durbal.
Link Head Dal 25 ES-2RS for Axlet diameter 25 mm with external left (M24x2) from the manufacturer Durbal.
| Product | Dal 25 es-2rs Durbal Link Head 1x64x20 (M24x2) |
| Manufacturer | DURBAL |
| Manufacturer's article number | Dal 25 es-2rs |
| Axle diameter | 25 mm |
| Thread | M24x2 - external left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer |
| Temperature range | -40 ° C to +120 ° C. |
| The angle of inclination | 7° |
| Sustainability Dynamically (C) | 36.5 kn |
| Sustainability Statically (C0) |
66.4 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 560 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal on both sides of the layer.
Dimensions
| Axle diameter (d) | 25 mm |
| Outer diameter (D2) | 64 mm |
| Width (B) | 20 mm |
| Length (L2) | 126 mm |
| Thread length (L1) | 53 mm |
| Thread (G) | M24x2 |
| C1 | 17 mm |
| h | 94 mm |
| I7 | 32 mm |
Alternative terms
Dal 25 es-2rs, dsal25 es-2rs, dsal-25 es-2rs
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
