LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

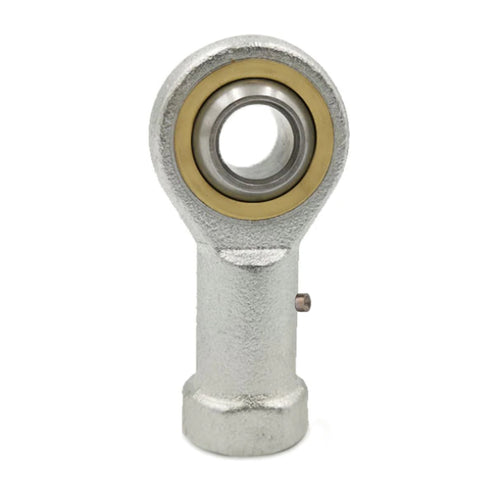

- Produktnamn: DPHS 14 Durbal Link Head - 14x34x19 (M14)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DPHS 14
Link Head DPHS 14 for Axlet diameter 14 mm with interior right -wing gang (M14) from the manufacturer Durbal.
| Product | DPHS 14 Durbal Link Head - 14x34x19 (M14) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DPHS 14 |
| Axle diameter | 14 mm |
| Thread | M14 -Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Brass - steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Temperature range | -40 ° C to +110 ° C. |
| The angle of inclination | 16° |
| Sustainability Dynamically (C) | 8.7 kn |
| Sustainability Statically (C0) |
19.2 kn |
| Material | House - Heat -treated steel, surface dip galvanized Outer ring - brass with lubrication tracks LED ball - tempered, ground and polished layer steel |
| Weight | 160 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Dimensions
| Axle diameter (d) | 14 mm |
| Outer diameter (D2) | 34 mm |
| Width (B) | 19 mm |
| Length (L4) | 74 mm |
| Thread length (l3) | 25 mm |
| Thread (G) | M14 |
| C1 | 13.5 mm |
| dk | 25.4 mm |
| H1 | 57 mm |
| I7 | 17 mm |
Alternative terms
DPHS 14, DPHS 14, DPHS14, DPHS14, DPHS-14, DPHS-14
Advantages
- Temperature range -40 ° C to +110 ° C
- Protects against corrosion
- Lubricated
- High quality
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head DPHS 14 for Axlet diameter 14 mm with interior right -wing gang (M14) from the manufacturer Durbal.
| Product | DPHS 14 Durbal Link Head - 14x34x19 (M14) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DPHS 14 |
| Axle diameter | 14 mm |
| Thread | M14 -Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Brass - steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Temperature range | -40 ° C to +110 ° C. |
| The angle of inclination | 16° |
| Sustainability Dynamically (C) | 8.7 kn |
| Sustainability Statically (C0) |
19.2 kn |
| Material | House - Heat -treated steel, surface dip galvanized Outer ring - brass with lubrication tracks LED ball - tempered, ground and polished layer steel |
| Weight | 160 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Dimensions
| Axle diameter (d) | 14 mm |
| Outer diameter (D2) | 34 mm |
| Width (B) | 19 mm |
| Length (L4) | 74 mm |
| Thread length (l3) | 25 mm |
| Thread (G) | M14 |
| C1 | 13.5 mm |
| dk | 25.4 mm |
| H1 | 57 mm |
| I7 | 17 mm |
Alternative terms
DPHS 14, DPHS 14, DPHS14, DPHS14, DPHS-14, DPHS-14
Advantages
- Temperature range -40 ° C to +110 ° C
- Protects against corrosion
- Lubricated
- High quality
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
