LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

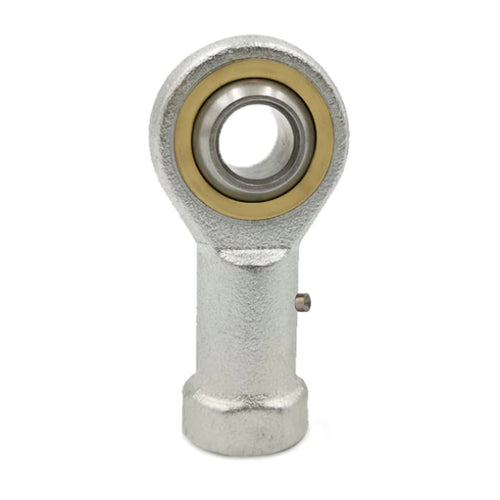

- Produktnamn: DPHSL 16 Durbal Link Head - 16x40x21 (M16)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DPHSL 16
Link Head DPHSL 16 for Axlet diameter 16 mm with internal left thread (M16) from the manufacturer Durbal.
| Product | DPHSL 16 Durbal Link Head - 16x40x21 (M16) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DPHSL 16 |
| Axle diameter | 16 mm |
| Thread | M16 -Inner left |
| Law game | CN (default) - normally |
| Sliding surface | Brass - steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Temperature range | -40 ° C to +110 ° C. |
| The angle of inclination | 15° |
| Sustainability Dynamically (C) | 10 kn |
| Sustainability Statically (C0) |
22.8 kn |
| Material | House - Heat -treated steel, surface dip galvanized Outer ring - brass with lubrication tracks LED ball - tempered, ground and polished layer steel |
| Weight | 220 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Dimensions
| Axle diameter (d) | 16 mm |
| Outer diameter (D2) | 40 mm |
| Width (B) | 21 mm |
| Length (L4) | 84 mm |
| Thread length (l3) | 28 mm |
| Thread (G) | M16 |
| C1 | 15 mm |
| dk | 28.58 mm |
| H1 | 64 mm |
| I7 | 20 mm |
Alternative terms
DPHSL 16, DPHSL 16, DPHSL16, DPHSL16, DPHSL-16, DPHSL-16
Advantages
- Temperature range -40 ° C to +110 ° C
- Protects against corrosion
- Lubricated
- High quality
