LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

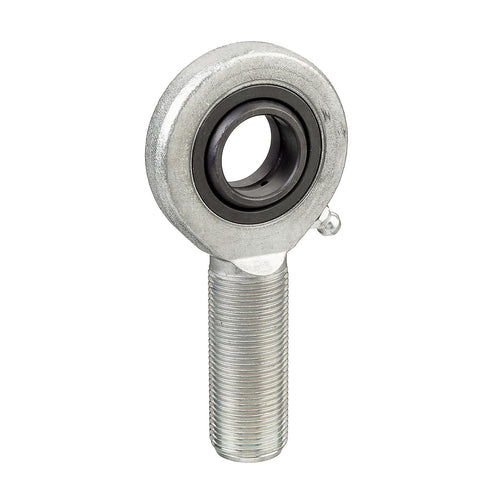

- Produktnamn: DSA 10 e Durbal Link Head - 10x29x9 (M10)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSA 10 e
Link Head DSA 10 E for Axlet diameter 10 mm with external right thread (M10) from the manufacturer Durbal.
Link Head DSA 10 E for Axlet diameter 10 mm with external right thread (M10) from the manufacturer Durbal.
| Product | DSA 10 e Durbal Link Head 1x29x9 (M10) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 10 e |
| Axle diameter | 10 mm |
| Thread | M10 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 12° |
| Sustainability Dynamically (C) | 5.2 kn |
| Sustainability Statically (C0) |
14.1 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 51 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
E - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 10 mm |
| Outer diameter (D2) | 29 mm |
| Width (B) | 9 mm |
| Length (L2) | 62.5 mm |
| Thread length (L1) | 26 mm |
| Thread (G) | M10 |
| C1 | 7 mm |
| h | 48 mm |
| I7 | 15 mm |
Alternative terms
DSA 10 E, DSA10 E, DSA-10 E
Advantages
- Temperature range -40 ° C to +200 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head DSA 10 E for Axlet diameter 10 mm with external right thread (M10) from the manufacturer Durbal.
Link Head DSA 10 E for Axlet diameter 10 mm with external right thread (M10) from the manufacturer Durbal.
| Product | DSA 10 e Durbal Link Head 1x29x9 (M10) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 10 e |
| Axle diameter | 10 mm |
| Thread | M10 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 12° |
| Sustainability Dynamically (C) | 5.2 kn |
| Sustainability Statically (C0) |
14.1 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 51 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
E - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 10 mm |
| Outer diameter (D2) | 29 mm |
| Width (B) | 9 mm |
| Length (L2) | 62.5 mm |
| Thread length (L1) | 26 mm |
| Thread (G) | M10 |
| C1 | 7 mm |
| h | 48 mm |
| I7 | 15 mm |
Alternative terms
DSA 10 E, DSA10 E, DSA-10 E
Advantages
- Temperature range -40 ° C to +200 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
