LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

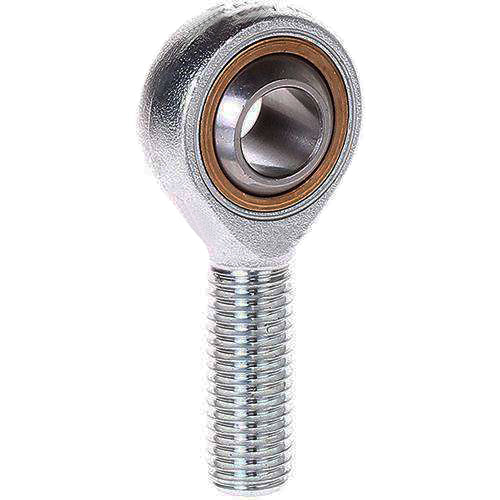

- Produktnamn: DSA 30 t/k Durbal Link Head - 30x70x37 (M30x2)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSA 30 t/k
Link Head DSA 30 T/K for Axlet diameter 30 mm with external right thread (M30x2) from the manufacturer Durbal.
Link head DSA 30 t/k for axle diameter 30 mm with external right thread (M30x2) from the manufacturer Durbal.
| Product | DSA 30 t/k Durbal Link Head - 30x70x37 (M30x2) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 30 t/k |
| Axle diameter | 30 mm |
| Thread | M30x2 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 17° |
| Sustainability Dynamically (C) | 54.7 kn |
| Sustainability Statically (C0) |
91.2 kn |
| Material | House -Heat -treated steel, surface dip galvanized. Outer ring - bronze/brass - PTFE composite. LED ball -tempered, polished and ground layer steel. |
| Weight | 1100 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
T/k - Steel/PTFE composite.
Dimensions
| Axle diameter (d) | 30 mm |
| Outer diameter (D2) | 70 mm |
| Width (B) | 37 mm |
| Length (L2) | 145 mm |
| Thread length (L1) | 66 mm |
| Thread (G) | M30x2 |
| C1 | 25 mm |
| h | 110 mm |
| I7 | 35 mm |
Alternative terms
DSA 30 T/K, DSA30T/K, DSA-30-T/K
Advantages
- Temperature range -40 ° C to +200° C.
- Protects against corrosion
- Maintenance -free
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head DSA 30 T/K for Axlet diameter 30 mm with external right thread (M30x2) from the manufacturer Durbal.
Link head DSA 30 t/k for axle diameter 30 mm with external right thread (M30x2) from the manufacturer Durbal.
| Product | DSA 30 t/k Durbal Link Head - 30x70x37 (M30x2) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 30 t/k |
| Axle diameter | 30 mm |
| Thread | M30x2 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 17° |
| Sustainability Dynamically (C) | 54.7 kn |
| Sustainability Statically (C0) |
91.2 kn |
| Material | House -Heat -treated steel, surface dip galvanized. Outer ring - bronze/brass - PTFE composite. LED ball -tempered, polished and ground layer steel. |
| Weight | 1100 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
T/k - Steel/PTFE composite.
Dimensions
| Axle diameter (d) | 30 mm |
| Outer diameter (D2) | 70 mm |
| Width (B) | 37 mm |
| Length (L2) | 145 mm |
| Thread length (L1) | 66 mm |
| Thread (G) | M30x2 |
| C1 | 25 mm |
| h | 110 mm |
| I7 | 35 mm |
Alternative terms
DSA 30 T/K, DSA30T/K, DSA-30-T/K
Advantages
- Temperature range -40 ° C to +200° C.
- Protects against corrosion
- Maintenance -free
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
