LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation
- Produktnamn: DSA 45 es Durbal Link Head - 45x102x32 (M42x3)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSA 45 es

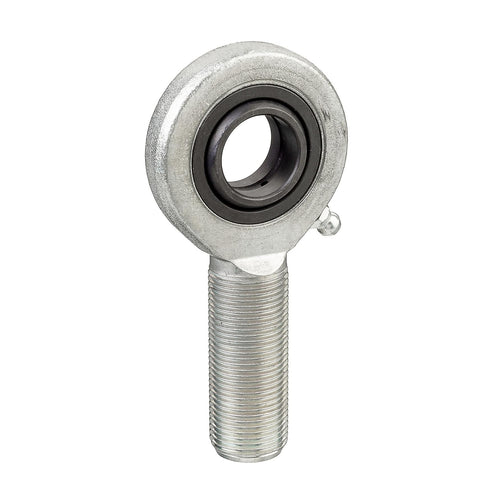

Link Head DSA 45 es for axle diameter 45 mm with external right thread (M42x3) from the manufacturer Durbal.
Link Head DSA 45 es for axle diameter 45 mm with external right thread (M42x3) from the manufacturer Durbal.
| Product | DSA 45 es Durbal Link Head 1x102x32 (M42x3) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 45 es |
| Axle diameter | 45 mm |
| Thread | M42x3 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 7° |
| Sustainability Dynamically (C) | 92.7 kn |
| Sustainability Statically (C0) |
192 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 2600 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 45 mm |
| Outer diameter (D2) | 102 mm |
| Width (B) | 32 mm |
| Length (L2) | 214 mm |
| Thread length (L1) | 94 mm |
| Thread (G) | M42x3 |
| C1 | 27 mm |
| h | 163 mm |
| I7 | 51 mm |
Alternative terms
DSA 45 ES, DSA45 ES, DSA-45 ES
Advantages
- Temperature range -40 ° C to +200 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head DSA 45 es for axle diameter 45 mm with external right thread (M42x3) from the manufacturer Durbal.
Link Head DSA 45 es for axle diameter 45 mm with external right thread (M42x3) from the manufacturer Durbal.
| Product | DSA 45 es Durbal Link Head 1x102x32 (M42x3) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 45 es |
| Axle diameter | 45 mm |
| Thread | M42x3 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 7° |
| Sustainability Dynamically (C) | 92.7 kn |
| Sustainability Statically (C0) |
192 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 2600 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 45 mm |
| Outer diameter (D2) | 102 mm |
| Width (B) | 32 mm |
| Length (L2) | 214 mm |
| Thread length (L1) | 94 mm |
| Thread (G) | M42x3 |
| C1 | 27 mm |
| h | 163 mm |
| I7 | 51 mm |
Alternative terms
DSA 45 ES, DSA45 ES, DSA-45 ES
Advantages
- Temperature range -40 ° C to +200 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
