LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation
- Produktnamn: DSA 50 ES-2RS Durbal Link Head - 50x112x35 (M45x3)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSA 50 ES-2RS

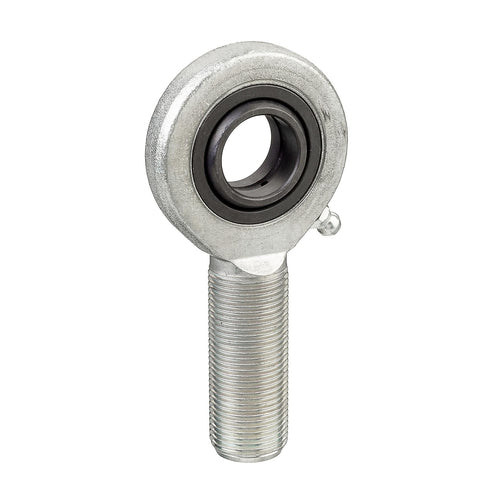

Link Head DSA 50 ES-2RS for axle diameter 50 mm with external right thread (M45x3) from the manufacturer Durbal.
Link Head DSA 50 ES-2RS for axle diameter 50 mm with external right thread (M45x3) from the manufacturer Durbal.
| Product | DSA 50 ES-2RS Durbal Link Head 1x112x35 (M45x3) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 50 ES-2RS |
| Axle diameter | 50 mm |
| Thread | M45x3 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer |
| Temperature range | -40 ° C to +120 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 112 kn |
| Sustainability Statically (C0) |
232 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 3400 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal on both sides of the layer. Dimensions
| Axle diameter (d) | 50 mm |
| Outer diameter (D2) | 112 mm |
| Width (B) | 35 mm |
| Length (L2) | 241 mm |
| Thread length (L1) | 107 mm |
| Thread (G) | M45x3 |
| C1 | 30 mm |
| h | 185 mm |
| I7 | 56 mm |
Alternative terms
DSA 50 ES-2RS, DSA50 ES-2RS, DSA-50 ES-2RS
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head DSA 50 ES-2RS for axle diameter 50 mm with external right thread (M45x3) from the manufacturer Durbal.
Link Head DSA 50 ES-2RS for axle diameter 50 mm with external right thread (M45x3) from the manufacturer Durbal.
| Product | DSA 50 ES-2RS Durbal Link Head 1x112x35 (M45x3) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSA 50 ES-2RS |
| Axle diameter | 50 mm |
| Thread | M45x3 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer |
| Temperature range | -40 ° C to +120 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 112 kn |
| Sustainability Statically (C0) |
232 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 3400 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal on both sides of the layer. Dimensions
| Axle diameter (d) | 50 mm |
| Outer diameter (D2) | 112 mm |
| Width (B) | 35 mm |
| Length (L2) | 241 mm |
| Thread length (L1) | 107 mm |
| Thread (G) | M45x3 |
| C1 | 30 mm |
| h | 185 mm |
| I7 | 56 mm |
Alternative terms
DSA 50 ES-2RS, DSA50 ES-2RS, DSA-50 ES-2RS
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
