LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

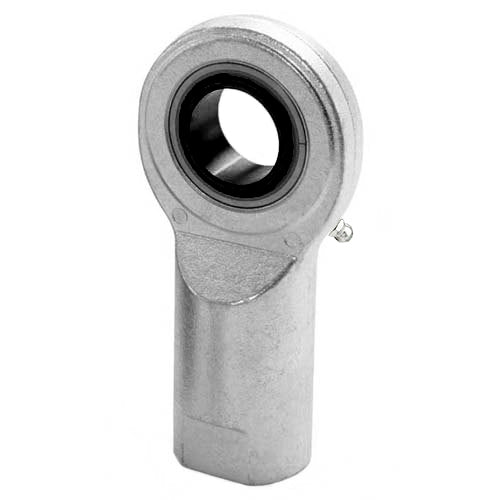

- Produktnamn: DSI 08 e Durbal Link Head - 8x24x8 (M8)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSI 8 e
Link Head DSI 08 E for Axlet diameter 8 mm with internal right thread (M8) from the manufacturer Durbal.
Link Head DSI 08 E for Axlet diameter 8 mm with internal right thread (M8) from the manufacturer Durbal.
| Product | DSI 08 e Durbal Link Head 1x24x8 (M8) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSI 08 e |
| Axle diameter | 8 mm |
| Thread | M8 - interior right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 15° |
| Sustainability Dynamically (C) | 3.5 kn |
| Sustainability Statically (C0) |
10.3 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 39 g |
| Living layer |
Post -designation (Suffix)
E - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 8 mm |
| Outer diameter (D2) | 24 mm |
| Width (B) | 8 mm |
| Length (L4) | 48 mm |
| Thread length (l3) | 15 mm |
| Thread (G) | M8 |
| C1 | 6 mm |
| H1 | 36 mm |
| I7 | 14 mm |
Alternative terms
DSI 08 E, DSI08 E, DSI-08 E
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head DSI 08 E for Axlet diameter 8 mm with internal right thread (M8) from the manufacturer Durbal.
Link Head DSI 08 E for Axlet diameter 8 mm with internal right thread (M8) from the manufacturer Durbal.
| Product | DSI 08 e Durbal Link Head 1x24x8 (M8) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSI 08 e |
| Axle diameter | 8 mm |
| Thread | M8 - interior right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 15° |
| Sustainability Dynamically (C) | 3.5 kn |
| Sustainability Statically (C0) |
10.3 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 39 g |
| Living layer |
Post -designation (Suffix)
E - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 8 mm |
| Outer diameter (D2) | 24 mm |
| Width (B) | 8 mm |
| Length (L4) | 48 mm |
| Thread length (l3) | 15 mm |
| Thread (G) | M8 |
| C1 | 6 mm |
| H1 | 36 mm |
| I7 | 14 mm |
Alternative terms
DSI 08 E, DSI08 E, DSI-08 E
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
