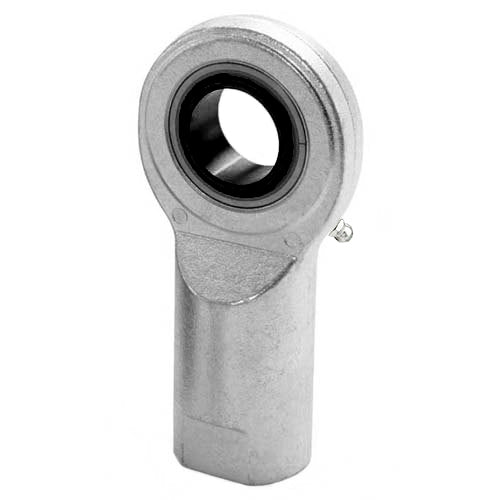

- Produktnamn: DSI 60 es Durbal Link Head - 60x135x44 (M52x3)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSI 60 es
Link Head DSI 60 ES for Axlet diameter 60 mm with interior right -wing gang (M52x3) from the manufacturer Durbal.
Link Head DSI 60 ES for Axlet diameter 60 mm with interior right -wing gang (M52x3) from the manufacturer Durbal.
| Product | DSI 60 es Durbal Link Head 1x135x44 (M52x3) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSI 60 es |
| Axle diameter | 60 mm |
| Thread | M52x3 - Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -40 ° C to +200 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 185.3 kn |
| Sustainability Statically (C0) |
360 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 5500 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 60 mm |
| Outer diameter (D2) | 135 mm |
| Width (B) | 44 mm |
| Length (L4) | 242.5 mm |
| Thread length (l3) | 70 mm |
| Thread (G) | M52x3 |
| C1 | 38 mm |
| H1 | 175 mm |
| I7 | 75 mm |
Alternative terms
DSI 60 ES, DSI60 ES, DSI-60 ES
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
