LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

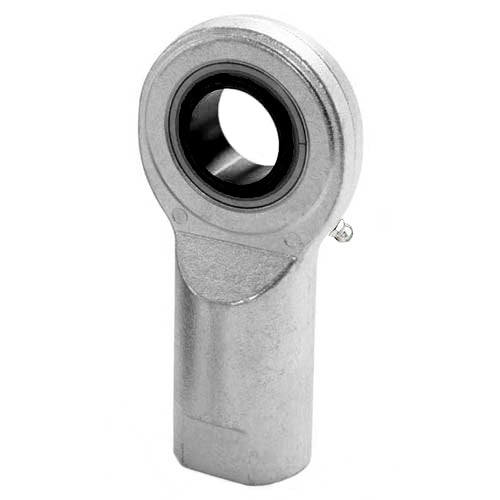

- Produktnamn: DSIL 15 ES-2RS Durbal Link Head - 15x40x12 (M14)
- Tillverkare: DURBAL
- Tillverkarens artikelnummer: DSIL 15 ES-2RS
Link Head Dsil 15 ES-2RS for Axlet diameter 15 mm with internal left thread (M14) from the manufacturer Durbal.
Link Head Dsil 15 ES-2RS for Axlet diameter 15 mm with internal left thread (M14) from the manufacturer Durbal.
| Product | DSIL 15 ES-2RS Durbal Link Head 1x40x12 (M14) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSIL 15 ES-2RS |
| Axle diameter | 15 mm |
| Thread | M14 - Inner left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer |
| Temperature range | -40 ° C to +120 ° C. |
| The angle of inclination | 8° |
| Sustainability Dynamically (C) | 11.2 kn |
| Sustainability Statically (C0) |
28.8 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 180 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal on both sides of the layer.
Dimensions
| Axle diameter (d) | 15 mm |
| Outer diameter (D2) | 40 mm |
| Width (B) | 12 mm |
| Length (L4) | 81 mm |
| Thread length (l3) | 30 mm |
| Thread (G) | M14 |
| C1 | 10 mm |
| H1 | 61 mm |
| I7 | 20 mm |
Alternative terms
DSIL 15 ES-2RS, DSIL15 ES-2RS, DSIL-15 ES-2RS
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Dsil 15 ES-2RS for Axlet diameter 15 mm with internal left thread (M14) from the manufacturer Durbal.
Link Head Dsil 15 ES-2RS for Axlet diameter 15 mm with internal left thread (M14) from the manufacturer Durbal.
| Product | DSIL 15 ES-2RS Durbal Link Head 1x40x12 (M14) |
| Manufacturer | DURBAL |
| Manufacturer's article number | DSIL 15 ES-2RS |
| Axle diameter | 15 mm |
| Thread | M14 - Inner left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel- steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer |
| Temperature range | -40 ° C to +120 ° C. |
| The angle of inclination | 8° |
| Sustainability Dynamically (C) | 11.2 kn |
| Sustainability Statically (C0) |
28.8 kn |
| Material | House -Heat -treated steel, surface dip galvanized Outer ring - hardened layer steel LED ball -hard chrome layer steel |
| Weight | 180 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal on both sides of the layer.
Dimensions
| Axle diameter (d) | 15 mm |
| Outer diameter (D2) | 40 mm |
| Width (B) | 12 mm |
| Length (L4) | 81 mm |
| Thread length (l3) | 30 mm |
| Thread (G) | M14 |
| C1 | 10 mm |
| H1 | 61 mm |
| I7 | 20 mm |
Alternative terms
DSIL 15 ES-2RS, DSIL15 ES-2RS, DSIL-15 ES-2RS
Advantages
- Temperature range -40 ° C to +120 ° C
- Protects against corrosion
- Lubricated
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
