LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

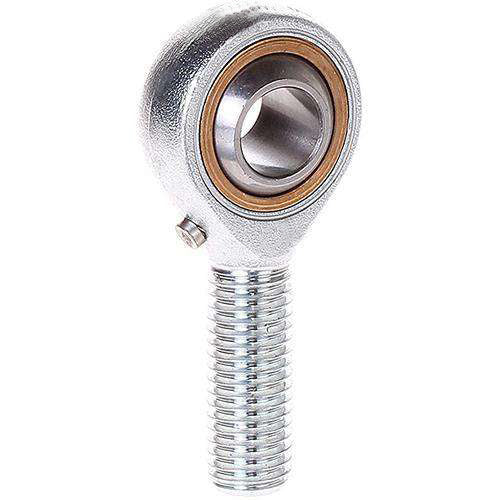

- Produktnamn: Gakl14-pb INA Link Head - 14x36x19 (M14)
- Tillverkare: INA
- Tillverkarens artikelnummer: Gakl14-pb
- Streckkod: 4012802547429
Efterbeteckningar
-
PB
Sliding contact -surface steel/bronze.
Link Head Gakl14-PW for Axlet diameter 14 mm with external left thread (M14) from the manufacturer INA.
Link Head Gakl14-PW for Axlet diameter 14 mm with external left thread (M14) from the manufacturer INA.
| Product | Gakl14-pw INA Link Head - 14x36x19 (M14) |
| Manufacturer | INA |
| Manufacturer's article number | Gakl14-pw |
| Axle diameter | 14 mm |
| Thread | M14 - external left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel Bronze |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -60 ° C to +250 ° C. |
| The angle of inclination | 16° |
| Sustainability Dynamically (C) | 17.1 kn |
| Sustainability Statically (C0) |
32 kn |
| Material | Plain Bearings - Steel - bronze |
| Weight | 160 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pb - Sliding surface consists of steel/bronze.
Dimensions
| Axle diameter (d) | 14 mm |
| Outer diameter (D2) | 36 mm |
| Width (B) | 19 mm |
| Length (L2) | 78 mm |
| Thread length (L1) | 36 mm |
| Thread (D3) | M14 |
| C1 | 13.5 mm |
| h | 60 mm |
| I7 | 18 mm |
Alternative terms
Gakl14-pw, gakl-14-pw, gakl 14 pw
Advantages
- Temperature range -60 ° C to +250 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Gakl14-PW for Axlet diameter 14 mm with external left thread (M14) from the manufacturer INA.
Link Head Gakl14-PW for Axlet diameter 14 mm with external left thread (M14) from the manufacturer INA.
| Product | Gakl14-pw INA Link Head - 14x36x19 (M14) |
| Manufacturer | INA |
| Manufacturer's article number | Gakl14-pw |
| Axle diameter | 14 mm |
| Thread | M14 - external left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel Bronze |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -60 ° C to +250 ° C. |
| The angle of inclination | 16° |
| Sustainability Dynamically (C) | 17.1 kn |
| Sustainability Statically (C0) |
32 kn |
| Material | Plain Bearings - Steel - bronze |
| Weight | 160 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pb - Sliding surface consists of steel/bronze.
Dimensions
| Axle diameter (d) | 14 mm |
| Outer diameter (D2) | 36 mm |
| Width (B) | 19 mm |
| Length (L2) | 78 mm |
| Thread length (L1) | 36 mm |
| Thread (D3) | M14 |
| C1 | 13.5 mm |
| h | 60 mm |
| I7 | 18 mm |
Alternative terms
Gakl14-pw, gakl-14-pw, gakl 14 pw
Advantages
- Temperature range -60 ° C to +250 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
