LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

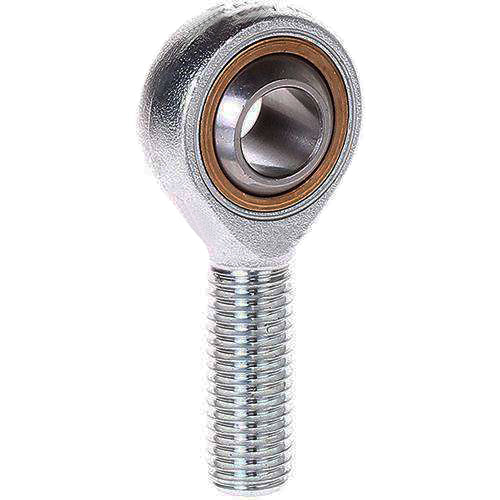

- Produktnamn: Gakr5-pw INA Link Head - 5x18x8 (M5)
- Tillverkare: INA
- Tillverkarens artikelnummer: Gakr5-pw
- Streckkod: 4012802524444
Efterbeteckningar
-
PW
Sliding contact -surface steel/PTFE (Polytetrafluorus) with bronze film.
Link Head GAKR5-PW for Axlet diameter 5 mm with external right thread (M5) from the manufacturer INA.
Link Head GAKR5-PW for Axlet diameter 5 mm with external right thread (M5) from the manufacturer INA.
| Product | Gakr5-pw INA Link Head - 5x18x8 (M5) |
| Manufacturer | INA |
| Manufacturer's article number | Gakr5-pw |
| Axle diameter | 5 mm |
| Thread | M5 - exterior right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | No |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 6 kn |
| Sustainability Statically (C0) |
4.89 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 13 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pw -Steel/PTFE with bronze movie
Dimensions
| Axle diameter (d) | 5 mm |
| Outer diameter (D2) | 18 mm |
| Width (B) | 8 mm |
| Length (L2) | 42 mm |
| Thread length (L1) | 19 mm |
| Thread (D3) | M5 |
| C1 | 6 mm |
| h | 33 mm |
Alternative terms
Gakr5-PW, Gakr-5-PW, Gakr 5 pw
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head GAKR5-PW for Axlet diameter 5 mm with external right thread (M5) from the manufacturer INA.
Link Head GAKR5-PW for Axlet diameter 5 mm with external right thread (M5) from the manufacturer INA.
| Product | Gakr5-pw INA Link Head - 5x18x8 (M5) |
| Manufacturer | INA |
| Manufacturer's article number | Gakr5-pw |
| Axle diameter | 5 mm |
| Thread | M5 - exterior right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | No |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 6 kn |
| Sustainability Statically (C0) |
4.89 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 13 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pw -Steel/PTFE with bronze movie
Dimensions
| Axle diameter (d) | 5 mm |
| Outer diameter (D2) | 18 mm |
| Width (B) | 8 mm |
| Length (L2) | 42 mm |
| Thread length (L1) | 19 mm |
| Thread (D3) | M5 |
| C1 | 6 mm |
| h | 33 mm |
Alternative terms
Gakr5-PW, Gakr-5-PW, Gakr 5 pw
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
