LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

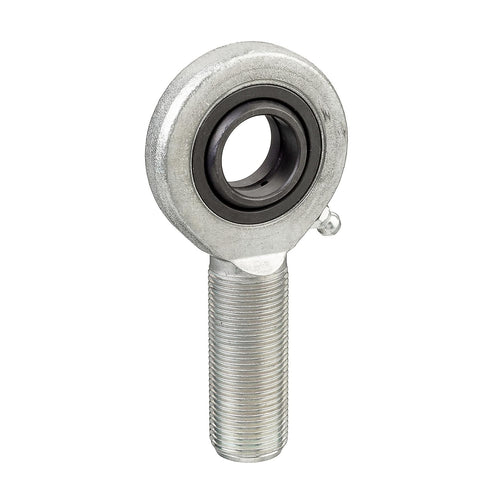

- Produktnamn: GAR60-DO-2RS INA Link Head - 60x135x44 (M52x3)
- Tillverkare: INA
- Tillverkarens artikelnummer: GAR60-DO-2RS
- Streckkod: 4012802525359
Efterbeteckningar
-
DO
Sliding contact-surface steel/steel and hardened inner and outer ring surface.
-
2RS
lip seal on both sides of the layer.
Link Head Gar60-DO-2RS for Axlet diameter 60 mm with external right thread (M52x3) from the manufacturer INA.
Link Head Gar60-DO-2RS for Axlet diameter 60 mm with external right thread (M52x3) from the manufacturer INA.
| Product | GAR60-DO-2RS INA Link Head - 60x135x44 (M52x3) |
| Manufacturer | INA |
| Manufacturer's article number | GAR60-DO-2RS |
| Axle diameter | 60 mm |
| Thread | M52x3 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer. |
| Temperature range | -30 ° C to +130 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 245 kn |
| Sustainability Statically (C0) |
485 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 5920 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
2RS - rubber seal on both sides of the layer
Dimensions
| Axle diameter (d) | 60 mm |
| Outer diameter (D2) | 135 mm |
| Width (B) | 44 mm |
| Length (L2) | 277.5 mm |
| Thread length (L1) | 115 mm |
| Thread (D3) | M52x3 |
| C1 | 38 mm |
| h | 210 mm |
| I7 | 75 mm |
Alternative terms
GAR60-DO-2RS, GAR60DO-2RS, GAR 60 DO-2RS
Advantages
- Temperature range -30 ° C to +130° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Gar60-DO-2RS for Axlet diameter 60 mm with external right thread (M52x3) from the manufacturer INA.
Link Head Gar60-DO-2RS for Axlet diameter 60 mm with external right thread (M52x3) from the manufacturer INA.
| Product | GAR60-DO-2RS INA Link Head - 60x135x44 (M52x3) |
| Manufacturer | INA |
| Manufacturer's article number | GAR60-DO-2RS |
| Axle diameter | 60 mm |
| Thread | M52x3 - external right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer. |
| Temperature range | -30 ° C to +130 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 245 kn |
| Sustainability Statically (C0) |
485 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 5920 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
2RS - rubber seal on both sides of the layer
Dimensions
| Axle diameter (d) | 60 mm |
| Outer diameter (D2) | 135 mm |
| Width (B) | 44 mm |
| Length (L2) | 277.5 mm |
| Thread length (L1) | 115 mm |
| Thread (D3) | M52x3 |
| C1 | 38 mm |
| h | 210 mm |
| I7 | 75 mm |
Alternative terms
GAR60-DO-2RS, GAR60DO-2RS, GAR 60 DO-2RS
Advantages
- Temperature range -30 ° C to +130° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
