LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

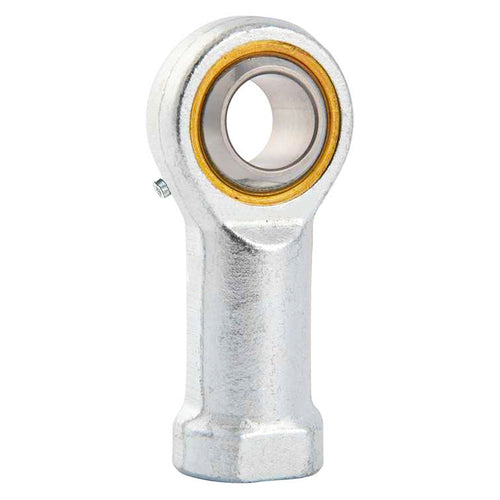

- Produktnamn: Gikr10-PB INA Link Head - 10x28x14 (M10)
- Tillverkare: INA
- Tillverkarens artikelnummer: Gikr10-PB
- Streckkod: 4012802526035
Efterbeteckningar
-
PB
Sliding contact -surface steel/bronze.
Link Head Gikr10-PW for Axlet diameter 10 mm with internal left thread (M10) from the manufacturer INA.
Link Head Gikr10-PW for Axlet diameter 10 mm with internal left thread (M10) from the manufacturer INA.
| Product | Gikr10-pw INA Link Head - 10x28x14 (M10) |
| Manufacturer | INA |
| Manufacturer's article number | Gikr10-pw |
| Axle diameter | 10 mm |
| Thread | M10 - Inner left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel Bronze |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -60 ° C to +250 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 10 kn |
| Sustainability Statically (C0) |
18.5 kn |
| Material | Plain Bearings - Steel - bronze |
| Weight | 81 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pb - Sliding surface consists of steel/bronze.
Dimensions
| Axle diameter (d) | 10 mm |
| Outer diameter (D2) | 28 mm |
| Width (B) | 14 mm |
| Length (L4) | 57 mm |
| Thread length (l3) | 20 mm |
| Thread (D3) | M10 |
| C1 | 10.5 mm |
| H1 | 43 mm |
| I7 | 15 mm |
Alternative terms
GIKR10-PW, GIKR-10 PW, GIKR 10 PW
Advantages
- Temperature range -60 ° C to +250 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Gikr10-PW for Axlet diameter 10 mm with internal left thread (M10) from the manufacturer INA.
Link Head Gikr10-PW for Axlet diameter 10 mm with internal left thread (M10) from the manufacturer INA.
| Product | Gikr10-pw INA Link Head - 10x28x14 (M10) |
| Manufacturer | INA |
| Manufacturer's article number | Gikr10-pw |
| Axle diameter | 10 mm |
| Thread | M10 - Inner left thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel Bronze |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -60 ° C to +250 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 10 kn |
| Sustainability Statically (C0) |
18.5 kn |
| Material | Plain Bearings - Steel - bronze |
| Weight | 81 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pb - Sliding surface consists of steel/bronze.
Dimensions
| Axle diameter (d) | 10 mm |
| Outer diameter (D2) | 28 mm |
| Width (B) | 14 mm |
| Length (L4) | 57 mm |
| Thread length (l3) | 20 mm |
| Thread (D3) | M10 |
| C1 | 10.5 mm |
| H1 | 43 mm |
| I7 | 15 mm |
Alternative terms
GIKR10-PW, GIKR-10 PW, GIKR 10 PW
Advantages
- Temperature range -60 ° C to +250 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
