LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

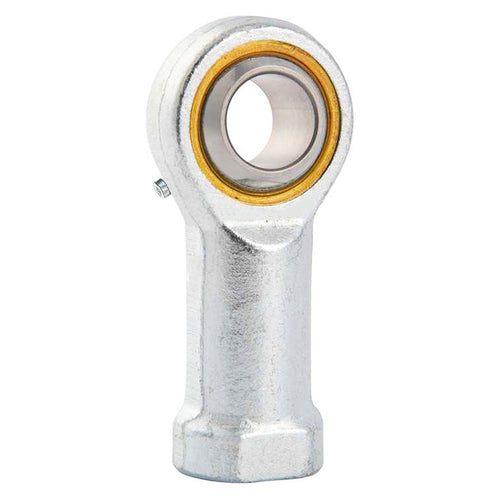

- Produktnamn: GIKR25-PB INA Link Head - 25x60x31 (M24x2)
- Tillverkare: INA
- Tillverkarens artikelnummer: GIKR25-PB
- Streckkod: 4012802526172
Efterbeteckningar
-
PB
Sliding contact -surface steel/bronze.
Link Head Gichr25-PW for Axlet diameter 25 mm with internal left thread (M24x2) from the manufacturer INA.
Link Head Gichr25-PW for Axlet diameter 25 mm with internal left thread (M24x2) from the manufacturer INA.
| Product | GIKR25-PW INA Link Head - 25x60x31 (M24x2) |
| Manufacturer | INA |
| Manufacturer's article number | GIKR25-PW |
| Axle diameter | 25 mm |
| Thread | M24x2 - Internal Left |
| Law game | CN (default) - normally |
| Sliding surface | Steel Bronze |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -60 ° C to +250 ° C. |
| The angle of inclination | 15° |
| Sustainability Dynamically (C) | 47.1 kn |
| Sustainability Statically (C0) |
72.9 kn |
| Material | Plain Bearings - Steel - bronze |
| Weight | 760 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pb - Sliding surface consists of steel/bronze.
Dimensions
| Axle diameter (d) | 25 mm |
| Outer diameter (D2) | 60 mm |
| Width (B) | 31 mm |
| Length (L4) | 124 mm |
| Thread length (l3) | 42 mm |
| Thread (D3) | M24x2 |
| C1 | 22 mm |
| H1 | 94 mm |
| I7 | 32 mm |
Alternative terms
GIKR25-PW, GIKR-25-PW, GIKR 25 PW
Advantages
- Temperature range -60 ° C to +250 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Gichr25-PW for Axlet diameter 25 mm with internal left thread (M24x2) from the manufacturer INA.
Link Head Gichr25-PW for Axlet diameter 25 mm with internal left thread (M24x2) from the manufacturer INA.
| Product | GIKR25-PW INA Link Head - 25x60x31 (M24x2) |
| Manufacturer | INA |
| Manufacturer's article number | GIKR25-PW |
| Axle diameter | 25 mm |
| Thread | M24x2 - Internal Left |
| Law game | CN (default) - normally |
| Sliding surface | Steel Bronze |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -60 ° C to +250 ° C. |
| The angle of inclination | 15° |
| Sustainability Dynamically (C) | 47.1 kn |
| Sustainability Statically (C0) |
72.9 kn |
| Material | Plain Bearings - Steel - bronze |
| Weight | 760 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
Pb - Sliding surface consists of steel/bronze.
Dimensions
| Axle diameter (d) | 25 mm |
| Outer diameter (D2) | 60 mm |
| Width (B) | 31 mm |
| Length (L4) | 124 mm |
| Thread length (l3) | 42 mm |
| Thread (D3) | M24x2 |
| C1 | 22 mm |
| H1 | 94 mm |
| I7 | 32 mm |
Alternative terms
GIKR25-PW, GIKR-25-PW, GIKR 25 PW
Advantages
- Temperature range -60 ° C to +250 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
