LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

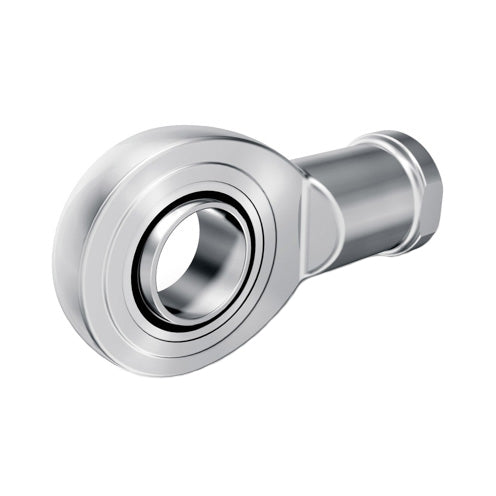

- Produktnamn: Gil60-UK-2RS INA Link Head - 60x135x44 (M52x3)
- Tillverkare: INA
- Tillverkarens artikelnummer: Gil60-UK-2RS
- Streckkod: 4012802529067
Efterbeteckningar
-
UK
Sliding contact surface in hard chrome/PTFE composite.
-
2RS
lip seal on both sides of the layer.
Link head Gil60-UK-2rs For axle diameter 60 mm with internal left thread (M52x3) from the manufacturer INA.
Link head Gil60-UK-2RS for Axlet diameter 60 mm with internal left thread (M52x3) from the manufacturer INA.
| Product | Gil60-Uk-2rs INA Link Head - 60x135x44 (M52x3) |
| Manufacturer | INA |
| Manufacturer's article number | Gil60-Uk-2rs |
| Axle diameter | 60 mm |
| Thread | M52x3 - Internal Left |
| Law game | CN (default) - normally |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | Rubber seal on both sides of the layer. |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 691 kn |
| Sustainability Statically (C0) |
485 kn |
| Material | Plain Bearings - Steel - PTFE composite. Inner ring - hard -chrome steel. |
| Weight | 5600 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
UK - Hard chrome steel/PTFE composite
2RS - Rubber seal on both sides of the layer.
Dimensions
| Axle diameter (d) | 60 mm |
| Outer diameter (D2) | 135 mm |
| Width (B) | 44 mm |
| Length (L4) | 242.5 mm |
| Thread length (l3) | 70 mm |
| Thread (D3) | M52x3 |
| C1 | 38 mm |
| H1 | 175 mm |
| I7 | 75 mm |
Alternative terms
Gil60-Uk-2rs, Gil60uk-2rs, Gil 60 UK-2rs
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- Maintenance -free
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link head Gil60-UK-2rs For axle diameter 60 mm with internal left thread (M52x3) from the manufacturer INA.
Link head Gil60-UK-2RS for Axlet diameter 60 mm with internal left thread (M52x3) from the manufacturer INA.
| Product | Gil60-Uk-2rs INA Link Head - 60x135x44 (M52x3) |
| Manufacturer | INA |
| Manufacturer's article number | Gil60-Uk-2rs |
| Axle diameter | 60 mm |
| Thread | M52x3 - Internal Left |
| Law game | CN (default) - normally |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | Rubber seal on both sides of the layer. |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 691 kn |
| Sustainability Statically (C0) |
485 kn |
| Material | Plain Bearings - Steel - PTFE composite. Inner ring - hard -chrome steel. |
| Weight | 5600 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
UK - Hard chrome steel/PTFE composite
2RS - Rubber seal on both sides of the layer.
Dimensions
| Axle diameter (d) | 60 mm |
| Outer diameter (D2) | 135 mm |
| Width (B) | 44 mm |
| Length (L4) | 242.5 mm |
| Thread length (l3) | 70 mm |
| Thread (D3) | M52x3 |
| C1 | 38 mm |
| H1 | 175 mm |
| I7 | 75 mm |
Alternative terms
Gil60-Uk-2rs, Gil60uk-2rs, Gil 60 UK-2rs
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- Maintenance -free
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
