LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

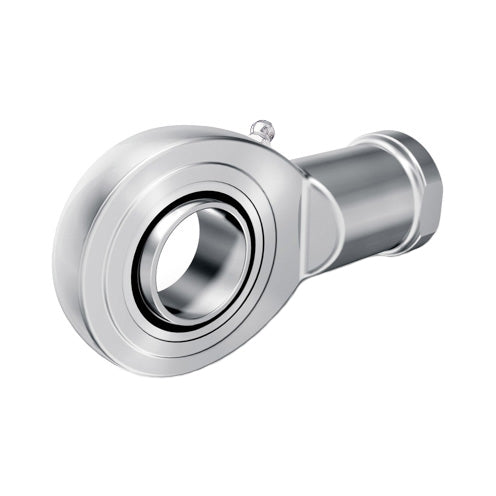

- Produktnamn: GIR25-DO INA Link Head - 25x64x20 (M24x2)
- Tillverkare: INA
- Tillverkarens artikelnummer: GIR25-DO
- Streckkod: 4012802526813
Efterbeteckningar
-
DO
Sliding contact-surface steel/steel and hardened inner and outer ring surface.
Link Head GIR25 DO for Axlet diameter 25 mm with interior right thread (M24x2) from the manufacturer INA.
Link Head GIR25 DO for Axlet diameter 25 mm with interior right thread (M24x2) from the manufacturer INA.
| Product | GIR25-DO INA Link Head - 25x64x20 (M24x2) |
| Manufacturer | INA |
| Manufacturer's article number | GIR25-DO |
| Axle diameter | 25 mm |
| Thread | M24x2 - Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 12° |
| Sustainability Dynamically (C) | 48.3 kn |
| Sustainability Statically (C0) |
88.3 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 660 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
Dimensions
| Axle diameter (d) | 25 mm |
| Outer diameter (D2) | 64 mm |
| Width (B) | 20 mm |
| Length (L4) | 126 mm |
| Thread length (l3) | 48 mm |
| Thread (D3) | M24x2 |
| C1 | 17 mm |
| H1 | 94 mm |
| I7 | 32 mm |
Alternative terms
GIR25-DO, GIR25DO, GIR 25 DO
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head GIR25 DO for Axlet diameter 25 mm with interior right thread (M24x2) from the manufacturer INA.
Link Head GIR25 DO for Axlet diameter 25 mm with interior right thread (M24x2) from the manufacturer INA.
| Product | GIR25-DO INA Link Head - 25x64x20 (M24x2) |
| Manufacturer | INA |
| Manufacturer's article number | GIR25-DO |
| Axle diameter | 25 mm |
| Thread | M24x2 - Internal right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 12° |
| Sustainability Dynamically (C) | 48.3 kn |
| Sustainability Statically (C0) |
88.3 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 660 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
Dimensions
| Axle diameter (d) | 25 mm |
| Outer diameter (D2) | 64 mm |
| Width (B) | 20 mm |
| Length (L4) | 126 mm |
| Thread length (l3) | 48 mm |
| Thread (D3) | M24x2 |
| C1 | 17 mm |
| H1 | 94 mm |
| I7 | 32 mm |
Alternative terms
GIR25-DO, GIR25DO, GIR 25 DO
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
