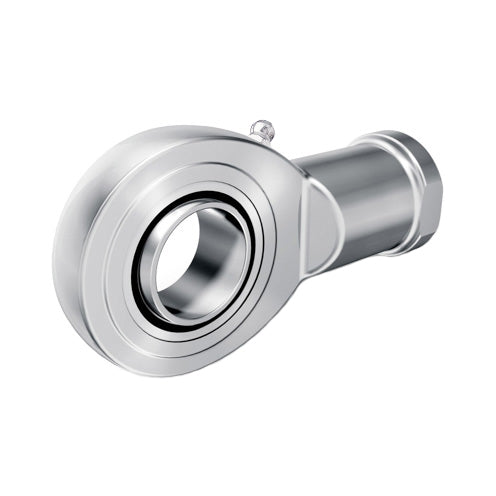

- Produktnamn: GIR35-DO-2RS INA Link Head - 35x82x25 (M36x3)
- Tillverkare: INA
- Tillverkarens artikelnummer: GIR35-DO-2RS
- Streckkod: 4012802526950
Efterbeteckningar
-
DO
Sliding contact-surface steel/steel and hardened inner and outer ring surface.
-
2RS
lip seal on both sides of the layer.
Link Head GIR35-DO-2RS for axle diameter 35 mm with internal right thread (M36x3) from the manufacturer INA.
Link Head GIR35 DO for Axlet diameter 35 mm with interior right-wing gang (M36x3) from the manufacturer INA.
| Product | GIR35-DO-2RS INA Link Head - 35x82x25 (M36x3) |
| Manufacturer | INA |
| Manufacturer's article number | GIR35-DO-2RS |
| Axle diameter | 35 mm |
| Thread | M36x3 - interior right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | Rubber seal on both sides of the layer. |
| Temperature range | -30 ° C to +130 ° C. |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 79.9 kn |
| Sustainability Statically (C0) |
159 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 1430 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
2RS - rubber seal on both sides of the layer
Dimensions
| Axle diameter (d) | 35 mm |
| Outer diameter (D2) | 82 mm |
| Width (B) | 25 mm |
| Length (L4) | 166 mm |
| Thread length (l3) | 60 mm |
| Thread (D3) | M36x3 |
| C1 | 21 mm |
| H1 | 125 mm |
| I7 | 42 mm |
Alternative terms
GIR35-DO-2RS, GIR35DO-2RS, GIR 35 DO-2RS
Advantages
- Temperature range -30 ° C to +130 ° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
