LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

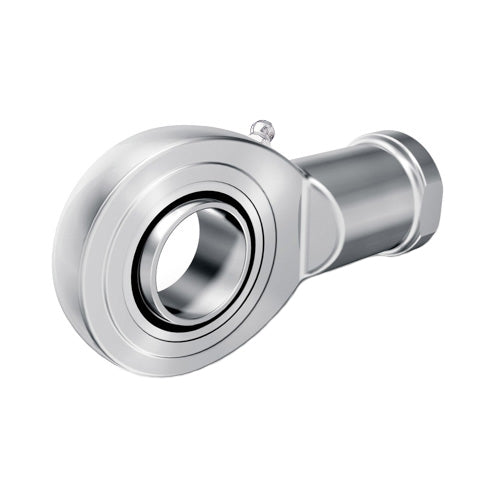

- Produktnamn: GIR6-DO INA Link Head - 6x21x6 (M6)
- Tillverkare: INA
- Tillverkarens artikelnummer: GIR6-DO
- Streckkod: 4012802527056
Efterbeteckningar
-
DO
Sliding contact-surface steel/steel and hardened inner and outer ring surface.
Link Head GIR6-DO for Axlet diameter 6 mm with interior right-wing gang (M6) from the manufacturer INA.
Link Head GIR6-DO for Axlet diameter 6 mm with interior right-wing gang (M6) from the manufacturer INA.
| Product | GIR6-DO INA Link Head - 6x21x6 (M6) |
| Manufacturer | INA |
| Manufacturer's article number | GIR6-DO |
| Axle diameter | 6 mm |
| Thread | M6 - Inner right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 3.4 kn |
| Sustainability Statically (C0) |
10.3 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 23 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
Dimensions
| Axle diameter (d) | 6 mm |
| Outer diameter (D2) | 21 mm |
| Width (B) | 6 mm |
| Length (L4) | 40.5 mm |
| Thread length (l3) | 11 mm |
| Thread (D3) | M6 |
| C1 | 4.4 mm |
| H1 | 30 mm |
| I7 | 12 mm |
Alternative terms
GIR6-DO, GIR6DO, GIR 6 DO
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head GIR6-DO for Axlet diameter 6 mm with interior right-wing gang (M6) from the manufacturer INA.
Link Head GIR6-DO for Axlet diameter 6 mm with interior right-wing gang (M6) from the manufacturer INA.
| Product | GIR6-DO INA Link Head - 6x21x6 (M6) |
| Manufacturer | INA |
| Manufacturer's article number | GIR6-DO |
| Axle diameter | 6 mm |
| Thread | M6 - Inner right thread |
| Law game | CN (default) - normally |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -50 ° C to +200 ° C. |
| The angle of inclination | 13° |
| Sustainability Dynamically (C) | 3.4 kn |
| Sustainability Statically (C0) |
10.3 kn |
| Material | Plain Bearings - Steel - steel |
| Weight | 23 g |
| Spherical Plain Bearings |
Post -designation (Suffix)
DO - Sliding surface - steel/steel
Dimensions
| Axle diameter (d) | 6 mm |
| Outer diameter (D2) | 21 mm |
| Width (B) | 6 mm |
| Length (L4) | 40.5 mm |
| Thread length (l3) | 11 mm |
| Thread (D3) | M6 |
| C1 | 4.4 mm |
| H1 | 30 mm |
| I7 | 12 mm |
Alternative terms
GIR6-DO, GIR6DO, GIR 6 DO
Advantages
- Temperature range -50 ° C to +200° C.
- Protects against corrosion
- High quality
- Adapted for large turning movements
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
