LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

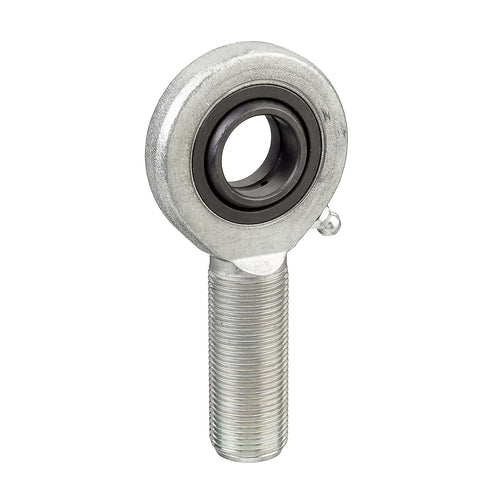

- Produktnamn: Hall 17 es SKF Link head - 17x47x14 (M16)
- Tillverkare: SKF
- Tillverkarens artikelnummer: Hall 17 es
- Streckkod: 7316577105035
Link Head Sal 17 ES for Axlet diameter 17 mm with external left (M16) from the manufacturerSKF.
Link Head Sal 17 ES for Axlet diameter 17 mm with external left (M16) from the manufacturerSKF.
| Product | Hall 17 es SKF Link head - 17x47x14 (M16) |
| Manufacturer | SKF |
| Manufacturer's article number | Hall 17 es |
| Axle diameter | 17 mm |
| Thread | M16 - external left thread |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -45 ° C to +110 ° C |
| The angle of inclination | 10° |
| Sustainability Dynamically (C) | 21.2 kn |
| Sustainability Statically (C0) |
31 kn |
| Material | Steel |
| Weight | 190 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 17 mm |
| Outer diameter (D2) | 47 mm |
| Width (B) | 14 mm |
| Length (L2) | 94 mm |
| Thread length (L1) | 36 mm |
| Thread (G) | M16 |
| C1 | 11.5 mm |
| h | 69 mm |
| I7 | 22 mm |
Alternative terms
Hall 17 ES, SAL-17-ES, SAL17ES
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -45 ° C to +110 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head Sal 17 ES for Axlet diameter 17 mm with external left (M16) from the manufacturerSKF.
Link Head Sal 17 ES for Axlet diameter 17 mm with external left (M16) from the manufacturerSKF.
| Product | Hall 17 es SKF Link head - 17x47x14 (M16) |
| Manufacturer | SKF |
| Manufacturer's article number | Hall 17 es |
| Axle diameter | 17 mm |
| Thread | M16 - external left thread |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | No |
| Temperature range | -45 ° C to +110 ° C |
| The angle of inclination | 10° |
| Sustainability Dynamically (C) | 21.2 kn |
| Sustainability Statically (C0) |
31 kn |
| Material | Steel |
| Weight | 190 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
Dimensions
| Axle diameter (d) | 17 mm |
| Outer diameter (D2) | 47 mm |
| Width (B) | 14 mm |
| Length (L2) | 94 mm |
| Thread length (L1) | 36 mm |
| Thread (G) | M16 |
| C1 | 11.5 mm |
| h | 69 mm |
| I7 | 22 mm |
Alternative terms
Hall 17 ES, SAL-17-ES, SAL17ES
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -45 ° C to +110 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
