- Produktnamn: LBBR 10-2LS/HV6 Ewellix Kulbussing 10x17x26
- Tillverkare: Ewellix
- Tillverkarens artikelnummer: LBBR 10-2LS/HV6
- Streckkod: 7316570554816

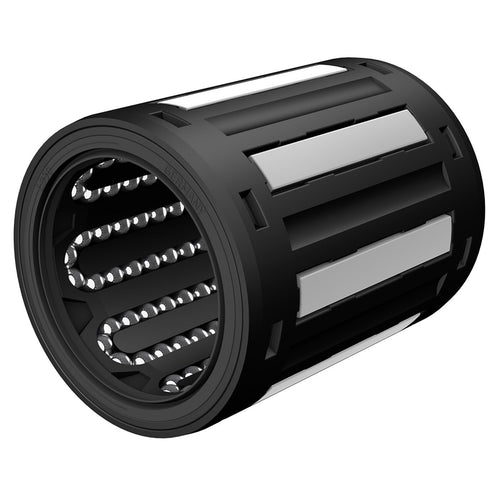

Stainless steel ball bushing LBBR 10-2ls/HV6 with lip seal on both sides with dimensions 10x17x26 mm from the manufacturer Ewellix.
SPECIFICATION
| Product | LBBR 10-2LS/HV6 Ewellix Stainless steel ball bushing 10x17x26 |
| Manufacturer |
Ewellix |
| Manufacturer's article number | LBBR 10-2LS/HV6 |
| Sealing | Lip seal on both sides |
| Material | Stainless steel |
| Lubricated | No |
| Performance | Closed |
| Inner diameter (Fw) | 10 mm |
| Outer diameter (D) | 17 mm |
| Width (C) | 26 mm |
Post -designation (suffix)
2ls - lip seal on both sides of the layer
HV6 - Stainless steel
Area of use
Ball Bushings used in applications there Profile Rail Guides Do not fit, for example in free -hanging loads that are only supported at the ends and at certain types of demanding environments. Plain Bushings Used when you want to avoid lubricants.
Can perform linear movements with the least possible frictional resistance, which provides very accurate and flexible movements. Example applications Ball Bushings Used for 3D printers and CNC machines etc.
Alternative designations
LBBR-10-2LS/HV6, LBBR.10.2LS/HV6, LBBR102LS/HV6, LBBR 10 2LS/HV6
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
