LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation
- Produktnamn: LM13UU THK Kulbussing 13x23x32
- Tillverkare: THK
- Tillverkarens artikelnummer: LM13UU

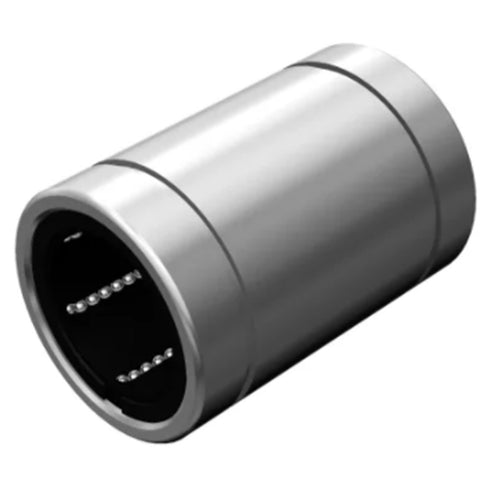

Rubber -sealed ball bushing LM13Uu with dimensions 13x23x32 mm from the manufacturer THK.
SPECIFICATION
| Product | LM13UU THK Kulbussing 13x23x32 |
| Manufacturer |
THK |
| Manufacturer's article number | LM13UU |
| Sealing | Rubber seal on both sides (NBR) |
| Material | Outer casing - steel Ball holder - plastic |
| Inner diameter (dr) | 13 mm |
| Outer diameter (D) | 23 mm |
| Length (L) | 32 mm |
Post -designation (suffix)
Uu - Exempt rubber seal of nitrile rubber (NBR) on both sides of the bullet bus that seals against dust, dirt and other particles.
Area of use
Ball Bushings used in applications there Profile Rail Guides Do not fit, for example in free -hanging loads that are only supported at the ends and at certain types of demanding environments. Plain Bushings Used when you want to avoid lubricants.
Can perform linear movements with the least possible frictional resistance, which provides very accurate and flexible movements. Example applications Ball Bushings Used for 3D printers and CNC machines etc.
Alternative designations
LM13-UU, LM13.UU, LM13UU, LM13 UU
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Rubber -sealed ball bushing LM13Uu with dimensions 13x23x32 mm from the manufacturer THK.
SPECIFICATION
| Product | LM13UU THK Kulbussing 13x23x32 |
| Manufacturer |
THK |
| Manufacturer's article number | LM13UU |
| Sealing | Rubber seal on both sides (NBR) |
| Material | Outer casing - steel Ball holder - plastic |
| Inner diameter (dr) | 13 mm |
| Outer diameter (D) | 23 mm |
| Length (L) | 32 mm |
Post -designation (suffix)
Uu - Exempt rubber seal of nitrile rubber (NBR) on both sides of the bullet bus that seals against dust, dirt and other particles.
Area of use
Ball Bushings used in applications there Profile Rail Guides Do not fit, for example in free -hanging loads that are only supported at the ends and at certain types of demanding environments. Plain Bushings Used when you want to avoid lubricants.
Can perform linear movements with the least possible frictional resistance, which provides very accurate and flexible movements. Example applications Ball Bushings Used for 3D printers and CNC machines etc.
Alternative designations
LM13-UU, LM13.UU, LM13UU, LM13 UU
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
