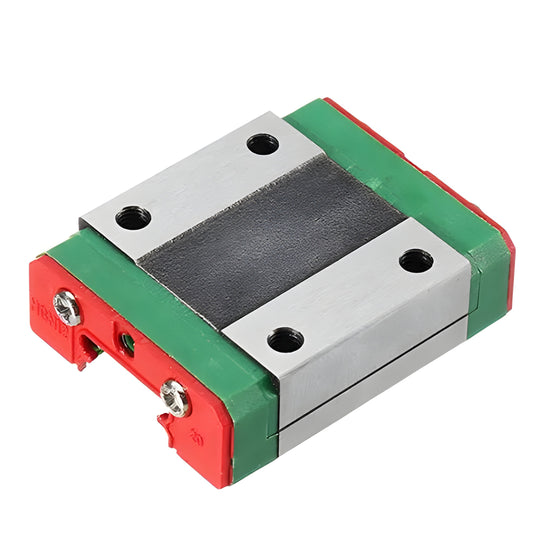

MNG9C linear carriage
150 kr
Tillbehör
Specifikation
- Produktnamn: MGN9 linear rail 1000mm
- Tillverkare: Generic
- Tillverkarens artikelnummer: MGN9
MGN9 linear rail is a high -precision control rail in miniature format, specially developed for applications that require exact linear movement in compact spaces. It is optimized for use with MGN9C and MNG9H linear cars and offers excellent precision and even walking.
Product specification
- Profile: MNG - Miniature Precision Series
- Size: 9 mm
- Material: Cured steel
- Compatibility: MNG9C and MNG9H
- Mounting screws: M3X8
Technical specifications
| Description | Parameter | Value |
|---|---|---|
| Shine width | Wᵣ | 9 mm |
| Shine height | Hᵣ | 6.5 mm |
| Hole diameter | D | 6.3 mm |
| Depth depth | h | 3.5 mm |
| Mounting hole diameter | d | 3.5 mm |
| Hole division | P | 20 mm |
Common uses
- 3D printer (x, y and z-axles)
- Small CNC machines and automation equipment
- Precision instruments and measuring equipment
- Optical systems and laser technology
- Miniaturized robotic applications
- Laboratory automation
Product benefits
Design benefits
- Compact profile for space -efficient installation
- Optimized for high precision and even movement
- Standardized mounting dimensions for easy integration
Technical benefits
- Precision -made running track for optimal movement
- Hardened steel construction for long life
- Well thought out hole image for stable mounting
- Adapted for both card (c) and long (h) carriage
Installation & maintenance
- Easy installation with standardized mounting holes
- Minimal maintenance requirement thanks to robust construction
- Compatible with all the components of the MGN9 series
- Flexible length adjustment as required
Mounting tips
- Ensure that the mounting surface is flat and clean
- Use recommended M3X8 mounting screws
- Follow the specified tightening torque for optimal function
- Check parallelness when installing multiple rails
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Inga recensioner ännu.
