LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation
- Produktnamn: Radial seal 32x50x10 HMSA10 RG SKF
- Tillverkare: SKF
- Tillverkarens artikelnummer: 32x50x10 HMSA10 RG
- Streckkod: 7316572550083
Efterbeteckningar
-
HMSA10
Radial seal with spring and extra dust lip.
-
RG
Material: Nitrile rubber (NBR) for the temperature range –40 to +100 °C.

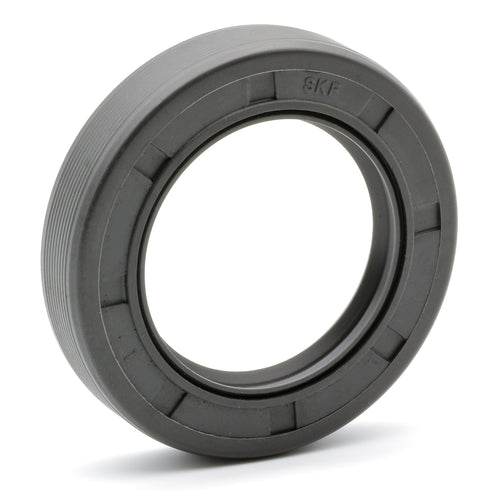

Radial seal 32x50x10 HMSA10 RG from the manufacturer SKF With spring, grooved outside and extra dust lip, made of nitrile rubber (NBR) with dimensions 32x50x10 mm.
Advantageously used together with hydraulic oils, vegetable oils, animal oils, acetylene, water, air, alcohol, fuels and many other media.
✔ Wide temperature range
✔ High and constant friction
✔ Resistant to oils and acids
✔ Very good dynamic properties
✔ High abrasion resistance, even at high temperature
✔ Outdoor antistatic properties of black nitrile rubber.
| Specification | |
| Product | Radial seal 32x50x10 HMSA10 RG SKF |
| Manufacturer | SKF |
| Manufacturer's article number | 35x50x10 HMSA10 RG |
| Design | HMSA10 RG |
| Max pressure | 0.5 bar |
| Temperature range | -40 ° C to +100 ° C. |
| Material | Nitril rubber (NBR with steel spring |
| Standard | ISO 6194 / DIN 3760 |
| Dimensions | |
| Inner diameter (D1) | 32 mm |
| Outer diameter (D) | 50 mm |
| Width (b) | 10 mm |
 |
|
| Stubborn table - Nitrile rubber (NBR) |
|
|
Very good ✔✔✔ Good ✔✔ Good ✔ Bad x |
|
| Acetaldehyde |
✔ |
| Acetamide | ✔✔✔ |
| Acetone | X |
| Acetylene | ✔✔✔ |
| Aluminum acetate | ✔✔ |
| Aluminum chloride | ✔✔✔ |
| Amoniak | ✔✔ |
| Ammonium chloride | ✔✔✔ |
| Ammonium hydroxide | X |
| Amyl acetate | X |
| Aniline | X |
| ASTM oil 1 | ✔✔✔ |
| ASTM oil 3 |
✔✔✔ |
| Benzene | X |
| Butane | ✔✔✔ |
| Butyl alcohol | ✔✔✔ |
| Benzoic acid | X |
| Citric acid | ✔✔✔ |
| Decalin | X |
| Dibensylets | X |
| Dibutylftalalate | X |
| Dimethylformamide | ✔✔ |
| Ethane | ✔✔✔ |
| Ethanol | ✔ |
| Ethyl chloride | ✔✔✔ |
| Ethylets |
✔ |
| Ethylene chloride | X |
| Ethylene glycol | X |
| Formaldehyde | ✔ |
| Freon 12 | ✔✔ |
| Freon 22 | X |
| Phenol | X |
| For example | ✔✔ |
| Kerosene | ✔✔✔ |
| Glucose | ✔✔✔ |
| Glycerin | ✔✔✔ |
| Heptane | ✔✔✔ |
| Hexan | ✔✔✔ |
| Hydraulic oil (petroleum based) | ✔✔✔ |
| Isoktan | ✔✔✔ |
| Isopropanol | ✔✔ |
| Calcium chloride | ✔✔✔ |
| Calcium hydroxide | ✔✔✔ |
| Calcium sulfide | ✔✔✔ |
| Carbon disulfide | X |
| Carbon tetrachloride | ✔✔ |
| Chlorine (wet) | X |
| Chlorine (dry) | X |
| Chloroform | X |
| Chromic acid | X |
| Creosote | ✔✔✔ |
| Nitrogen | ✔✔✔ |
| Potassium nitrate | ✔✔✔ |
| Methane | ✔✔✔ |
| Methanol | ✔✔✔ |
| Methyl alcohol | ✔✔✔ |
| Methyl chloride | X |
| Methylethyl ketone | X |
| Methylene chloride | X |
| Naphtha | ✔✔ |
| Nitrobenzen | X |
| Sodium carbonate | ✔✔✔ |
| Sodium chloride | ✔✔✔ |
| Sodium hydroxide | ✔✔ |
| Oleum | X |
| Oxalic | ✔✔ |
| Propane | ✔✔✔ |
| Ricin oil | ✔✔✔ |
| Stearic acid | ✔✔ |
| Sulfuric acid (concentrated) | X |
| Oxygen (cold) | ✔✔ |
| Oxygen, 93-204 ° C. | X |
| Hydrochloric acid 37% cold | ✔ |
| Nitric acid | X |
| Silicone oil | ✔✔✔ |
| Tetrachloroetan | X |
| Tetralin | X |
| Toluen | X |
| Trietanolamine | ✔ |
| Turpentine | ✔✔✔ |
| Hydrogen | ✔✔✔ |
| Hydrogen peroxide | ✔✔ |
| Water | ✔✔✔ |
| Xylene | X |
| Steam, below 176 ° C. | X |
| Acetic acid | ✔✔ |
| Restrictions | Should not be exposed to high -polar solvents such as acetone, MEK, chlorinated hydrocarbons and nitrok hydrocarbons, which are known to cause a rapid and extreme degradation. Further restrictions for the use of Nitril are applications with direct sunlight and ozone exposure |
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Radial seal 32x50x10 HMSA10 RG from the manufacturer SKF With spring, grooved outside and extra dust lip, made of nitrile rubber (NBR) with dimensions 32x50x10 mm.
Advantageously used together with hydraulic oils, vegetable oils, animal oils, acetylene, water, air, alcohol, fuels and many other media.
✔ Wide temperature range
✔ High and constant friction
✔ Resistant to oils and acids
✔ Very good dynamic properties
✔ High abrasion resistance, even at high temperature
✔ Outdoor antistatic properties of black nitrile rubber.
| Specification | |
| Product | Radial seal 32x50x10 HMSA10 RG SKF |
| Manufacturer | SKF |
| Manufacturer's article number | 35x50x10 HMSA10 RG |
| Design | HMSA10 RG |
| Max pressure | 0.5 bar |
| Temperature range | -40 ° C to +100 ° C. |
| Material | Nitril rubber (NBR with steel spring |
| Standard | ISO 6194 / DIN 3760 |
| Dimensions | |
| Inner diameter (D1) | 32 mm |
| Outer diameter (D) | 50 mm |
| Width (b) | 10 mm |
|
|
|
| Stubborn table - Nitrile rubber (NBR) |
|
|
Very good ✔✔✔ Good ✔✔ Good ✔ Bad x |
|
| Acetaldehyde |
✔ |
| Acetamide | ✔✔✔ |
| Acetone | X |
| Acetylene | ✔✔✔ |
| Aluminum acetate | ✔✔ |
| Aluminum chloride | ✔✔✔ |
| Amoniak | ✔✔ |
| Ammonium chloride | ✔✔✔ |
| Ammonium hydroxide | X |
| Amyl acetate | X |
| Aniline | X |
| ASTM oil 1 | ✔✔✔ |
| ASTM oil 3 |
✔✔✔ |
| Benzene | X |
| Butane | ✔✔✔ |
| Butyl alcohol | ✔✔✔ |
| Benzoic acid | X |
| Citric acid | ✔✔✔ |
| Decalin | X |
| Dibensylets | X |
| Dibutylftalalate | X |
| Dimethylformamide | ✔✔ |
| Ethane | ✔✔✔ |
| Ethanol | ✔ |
| Ethyl chloride | ✔✔✔ |
| Ethylets |
✔ |
| Ethylene chloride | X |
| Ethylene glycol | X |
| Formaldehyde | ✔ |
| Freon 12 | ✔✔ |
| Freon 22 | X |
| Phenol | X |
| For example | ✔✔ |
| Kerosene | ✔✔✔ |
| Glucose | ✔✔✔ |
| Glycerin | ✔✔✔ |
| Heptane | ✔✔✔ |
| Hexan | ✔✔✔ |
| Hydraulic oil (petroleum based) | ✔✔✔ |
| Isoktan | ✔✔✔ |
| Isopropanol | ✔✔ |
| Calcium chloride | ✔✔✔ |
| Calcium hydroxide | ✔✔✔ |
| Calcium sulfide | ✔✔✔ |
| Carbon disulfide | X |
| Carbon tetrachloride | ✔✔ |
| Chlorine (wet) | X |
| Chlorine (dry) | X |
| Chloroform | X |
| Chromic acid | X |
| Creosote | ✔✔✔ |
| Nitrogen | ✔✔✔ |
| Potassium nitrate | ✔✔✔ |
| Methane | ✔✔✔ |
| Methanol | ✔✔✔ |
| Methyl alcohol | ✔✔✔ |
| Methyl chloride | X |
| Methylethyl ketone | X |
| Methylene chloride | X |
| Naphtha | ✔✔ |
| Nitrobenzen | X |
| Sodium carbonate | ✔✔✔ |
| Sodium chloride | ✔✔✔ |
| Sodium hydroxide | ✔✔ |
| Oleum | X |
| Oxalic | ✔✔ |
| Propane | ✔✔✔ |
| Ricin oil | ✔✔✔ |
| Stearic acid | ✔✔ |
| Sulfuric acid (concentrated) | X |
| Oxygen (cold) | ✔✔ |
| Oxygen, 93-204 ° C. | X |
| Hydrochloric acid 37% cold | ✔ |
| Nitric acid | X |
| Silicone oil | ✔✔✔ |
| Tetrachloroetan | X |
| Tetralin | X |
| Toluen | X |
| Trietanolamine | ✔ |
| Turpentine | ✔✔✔ |
| Hydrogen | ✔✔✔ |
| Hydrogen peroxide | ✔✔ |
| Water | ✔✔✔ |
| Xylene | X |
| Steam, below 176 ° C. | X |
| Acetic acid | ✔✔ |
| Restrictions | Should not be exposed to high -polar solvents such as acetone, MEK, chlorinated hydrocarbons and nitrok hydrocarbons, which are known to cause a rapid and extreme degradation. Further restrictions for the use of Nitril are applications with direct sunlight and ozone exposure |
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
