LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

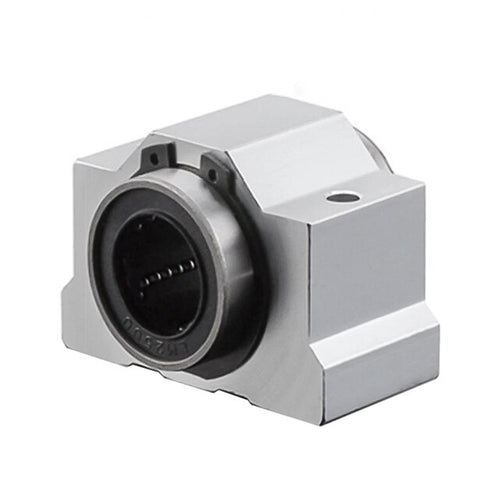

- Produktnamn: SC16VUU CUBLY BUSINESS Unit Ø16
- Tillverkare: Generic
- Tillverkarens artikelnummer: SC16VUU
Kulbussing device SC16VUU made of aluminum, steel and plastic for shoulder diameter 16mm from the manufacturer Generic.
SPECIFICATION
| Product | SC16VUU CUBLY BUSINESS Unit Ø16 |
| Manufacturer |
Generic |
| Manufacturer's article number |
SC16VUU |
| Material | Balls - steel Ball holder - plastic Outer casing ball bushing-steel Warehouse - Aluminum |
| Axle diameter | 16 mm |
| T | 9 mm |
| h | 19 mm |
| E | 25 mm |
| W | 50 mm |
| L | 24.1 mm |
| F | 38.5 mm |
| G | 32.5 mm |
| B | 36 mm |
| C | 34 mm |
| K | 7 mm |
| S1 | M5 |
| S2 | 4.3 mm |
| L1 | 12 mm |
Area of use
Ball bushings are used for applications where rail controls do not fit, for example in free -hanging loads that are only supported at the ends and at certain types of demanding environments. Gliding buses are used when you want to avoid lubricants.
Can perform linear movements with the least possible frictional resistance, which provides very accurate and flexible movements. Examples applications Bulbing units are used for 3D printers and CNC machines etc.
Suitable products
SC16VUU CUBLY BUSINESS Unit Ø16
| Article | PRODUCT |
| LM16UU | Kulbussing 16x28x37 |
Alternative designations
SC16VUU, SC16-VUU, SC-16-VUU, SC 16 VUU, SC16.VUU, SC.16.VUU, SC 16 VUU, SC16 VUU
Linear Kulbussing Unit, linear bullet bus unit
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
