LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

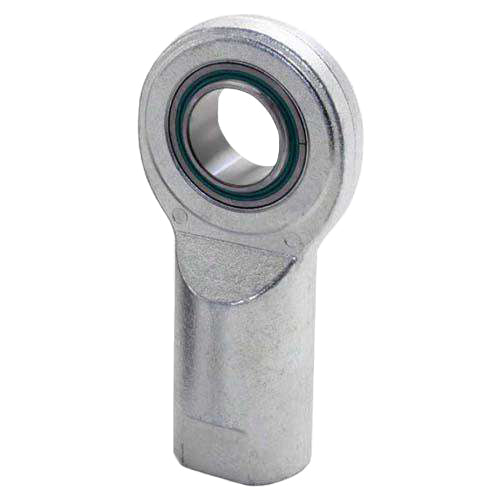

- Produktnamn: SI 50 TXE-2LS SKF Link head - 50x114x35 (M52x3)
- Tillverkare: SKF
- Tillverkarens artikelnummer: SI 50 TXE-2LS
- Streckkod: 7316572049204
Maintenance-free linkhead SI 50 TXE-2LS for Axlet diameter 50 mm with internal right thread (M52x3) from the manufacturerSKF.
Maintenance-free linkhead SI 50 TXE-2LS for Axlet diameter 50 mm with internal right thread (M52x3) from the manufacturerSKF.
| Product | SI 50 TXE-2LS SKF Link head - 50x114x35 (M52x3) |
| Manufacturer | SKF |
| Manufacturer's article number | SI 50 TXE-2LS |
| Axle diameter | 50 mm |
| Thread | M52x3 - Internal right thread |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | (2ls) Exemption sealing polyurethane (au) on both sides of the warehouse |
| Temperature range | -40 ° C to +110 ° C |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 440 kn |
| Sustainability Statically (C0) |
270 kn |
| Material | Steel/PTFE |
| Weight | 4500 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Txe - Tempered and ground steel, hard chrome plated and polished sliding surface.
2ls - Exemption sealing polyurethane (au) on both sides of the warehouse
Dimensions
| Axle diameter (d) | 50 mm |
| Outer diameter (D2) | 114 mm |
| Width (B) | 35 mm |
| Length (L4) | 254 mm |
| Thread length (l3) | 68 mm |
| Thread (G) | M52x3 |
| C1 | 31 mm |
| H1 | 195 mm |
| I7 | 68 mm |
Alternative terms
SI 50 TXE 2LS, SI-50-TXE-2LS, SI50TXE2LS
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -40 ° C to +110 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Maintenance-free linkhead SI 50 TXE-2LS for Axlet diameter 50 mm with internal right thread (M52x3) from the manufacturerSKF.
Maintenance-free linkhead SI 50 TXE-2LS for Axlet diameter 50 mm with internal right thread (M52x3) from the manufacturerSKF.
| Product | SI 50 TXE-2LS SKF Link head - 50x114x35 (M52x3) |
| Manufacturer | SKF |
| Manufacturer's article number | SI 50 TXE-2LS |
| Axle diameter | 50 mm |
| Thread | M52x3 - Internal right thread |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | (2ls) Exemption sealing polyurethane (au) on both sides of the warehouse |
| Temperature range | -40 ° C to +110 ° C |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 440 kn |
| Sustainability Statically (C0) |
270 kn |
| Material | Steel/PTFE |
| Weight | 4500 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Txe - Tempered and ground steel, hard chrome plated and polished sliding surface.
2ls - Exemption sealing polyurethane (au) on both sides of the warehouse
Dimensions
| Axle diameter (d) | 50 mm |
| Outer diameter (D2) | 114 mm |
| Width (B) | 35 mm |
| Length (L4) | 254 mm |
| Thread length (l3) | 68 mm |
| Thread (G) | M52x3 |
| C1 | 31 mm |
| H1 | 195 mm |
| I7 | 68 mm |
Alternative terms
SI 50 TXE 2LS, SI-50-TXE-2LS, SI50TXE2LS
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -40 ° C to +110 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
