LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

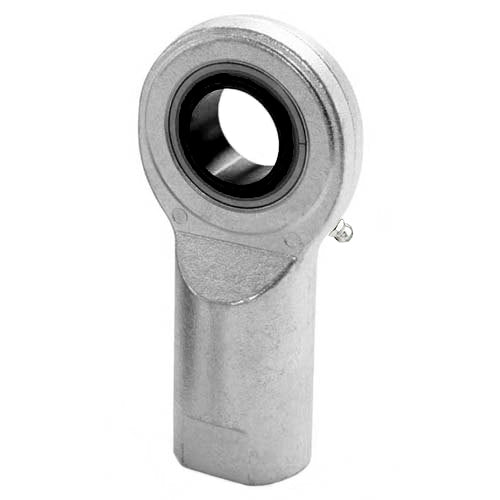

- Produktnamn: SIL 35 ES-2RS SKF Link head - 35x84x25 (M36x3)
- Tillverkare: SKF
- Tillverkarens artikelnummer: SIL 35 ES-2RS
- Streckkod: 7316570048346
Link Head SIL 35 ES-2RS for axle diameter 35 mm with internal left thread (M36x3) from the manufacturerSKF.
Link Head SIL 35 ES-2RS for axle diameter 35 mm with internal left thread (M36x3) from the manufacturerSKF.
| Product | SIL 35 ES-2RS SKF Link head - 35x84x25 (M36x3) |
| Manufacturer | SKF |
| Manufacturer's article number | SIL 35 ES-2RS |
| Axle diameter | 35 mm |
| Thread | M36x3 - interior left thread |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | (2RS) rubber seal of TPE on both sides of the layer |
| Temperature range | -30 ° C to +130 ° C |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 80 kn |
| Sustainability Statically (C0) |
134 kn |
| Material | Steel |
| Weight | 1400 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal of TPE on both sides of the layer.
Dimensions
| Axle diameter (d) | 35 mm |
| Outer diameter (D2) | 84 mm |
| Width (B) | 25 mm |
| Length (L4) | 174 mm |
| Thread length (l3) | 60 mm |
| Thread (G) | M36x3 |
| C1 | 22 mm |
| H1 | 130 mm |
| I7 | 40 mm |
Alternative terms
SIL 35 ES 2RS, SIL-35-AS-2RS, SIL35ES2RS
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -30 ° C to +130 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Link Head SIL 35 ES-2RS for axle diameter 35 mm with internal left thread (M36x3) from the manufacturerSKF.
Link Head SIL 35 ES-2RS for axle diameter 35 mm with internal left thread (M36x3) from the manufacturerSKF.
| Product | SIL 35 ES-2RS SKF Link head - 35x84x25 (M36x3) |
| Manufacturer | SKF |
| Manufacturer's article number | SIL 35 ES-2RS |
| Axle diameter | 35 mm |
| Thread | M36x3 - interior left thread |
| Sliding surface | Steel -steel |
| Use | Axial loads |
| Maintenance | Lubrication is needed |
| Sealing | (2RS) rubber seal of TPE on both sides of the layer |
| Temperature range | -30 ° C to +130 ° C |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 80 kn |
| Sustainability Statically (C0) |
134 kn |
| Material | Steel |
| Weight | 1400 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Es - Steel against steel, grooves with lubricating holes in both inner ring and outer.
2RS - Rubber seal of TPE on both sides of the layer.
Dimensions
| Axle diameter (d) | 35 mm |
| Outer diameter (D2) | 84 mm |
| Width (B) | 25 mm |
| Length (L4) | 174 mm |
| Thread length (l3) | 60 mm |
| Thread (G) | M36x3 |
| C1 | 22 mm |
| H1 | 130 mm |
| I7 | 40 mm |
Alternative terms
SIL 35 ES 2RS, SIL-35-AS-2RS, SIL35ES2RS
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -30 ° C to +130 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
