LGMT 2/ 0.4 SKF Lubricating fat, 420ml cartridge
295 kr
Tillbehör
Specifikation

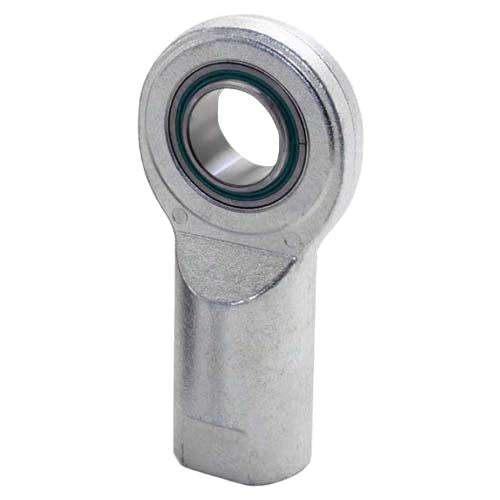

- Produktnamn: SIL 40 TXE-2LS SKF Link Head - 40x94x28 (M42x3)
- Tillverkare: SKF
- Tillverkarens artikelnummer: SIL 40 TXE-2LS
- Streckkod: 7316572082188
Maintenance-free linkhead SIL 40 TXE-2LS for Axlet diameter 40 mm with internal left thread (M42x3) from the manufacturerSKF.
Maintenance-free linkhead SIL 40 TXE-2LS for Axlet diameter 40 mm with internal left thread (M42x3) from the manufacturerSKF.
| Product | SIL 40 TXE-2LS SKF Link Head - 40x94x28 (M42x3) |
| Manufacturer | SKF |
| Manufacturer's article number | SIL 40 TXE-2LS |
| Axle diameter | 40 mm |
| Thread | M42x3 - Inner left thread |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | (2ls) Exemption sealing polyurethane (au) on both sides of the warehouse |
| Temperature range | -40 ° C to +110 ° C |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 280 kn |
| Sustainability Statically (C0) |
166 kn |
| Material | Steel/PTFE |
| Weight | 2300 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Txe - Tempered and ground steel, hard chrome plated and polished sliding surface.
2ls - Exemption sealing polyurethane (au) on both sides of the warehouse
Dimensions
| Axle diameter (d) | 40 mm |
| Outer diameter (D2) | 94 mm |
| Width (B) | 28 mm |
| Length (L4) | 194 mm |
| Thread length (l3) | 65 mm |
| Thread (G) | M42x3 |
| C1 | 24 mm |
| H1 | 145 mm |
| I7 | 50 mm |
Alternative terms
SIL 40 TXE 2LS, SIL-40-TXE-2LS, SIL40TXE2LS
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -40 ° C to +110 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Maintenance-free linkhead SIL 40 TXE-2LS for Axlet diameter 40 mm with internal left thread (M42x3) from the manufacturerSKF.
Maintenance-free linkhead SIL 40 TXE-2LS for Axlet diameter 40 mm with internal left thread (M42x3) from the manufacturerSKF.
| Product | SIL 40 TXE-2LS SKF Link Head - 40x94x28 (M42x3) |
| Manufacturer | SKF |
| Manufacturer's article number | SIL 40 TXE-2LS |
| Axle diameter | 40 mm |
| Thread | M42x3 - Inner left thread |
| Sliding surface | Steel - PTFE |
| Use | Axial loads |
| Maintenance | Maintenance -free |
| Sealing | (2ls) Exemption sealing polyurethane (au) on both sides of the warehouse |
| Temperature range | -40 ° C to +110 ° C |
| The angle of inclination | 6° |
| Sustainability Dynamically (C) | 280 kn |
| Sustainability Statically (C0) |
166 kn |
| Material | Steel/PTFE |
| Weight | 2300 g |
| Spherical Plain Bearings |
|
| Technical specification | DOWNLOAD |
Post -designation (Suffix)
Txe - Tempered and ground steel, hard chrome plated and polished sliding surface.
2ls - Exemption sealing polyurethane (au) on both sides of the warehouse
Dimensions
| Axle diameter (d) | 40 mm |
| Outer diameter (D2) | 94 mm |
| Width (B) | 28 mm |
| Length (L4) | 194 mm |
| Thread length (l3) | 65 mm |
| Thread (G) | M42x3 |
| C1 | 24 mm |
| H1 | 145 mm |
| I7 | 50 mm |
Alternative terms
SIL 40 TXE 2LS, SIL-40-TXE-2LS, SIL40TXE2LS
Advantages
- Increased operating time
- Protects against corrosion
- Temperature range -40 ° C to +110 ° C
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
