LGMT 2/ 0.2 SKF Lubricating fat, 200g tube
225 kr
Specifikation
- Produktnamn: UK308D1 NTN Insert Bearings 40x90x27
- Tillverkare: NTN
- Tillverkarens artikelnummer: UK308D1
- Streckkod: 4547359242096
Efterbeteckningar
-
D
Lubricating holes on outer ring.

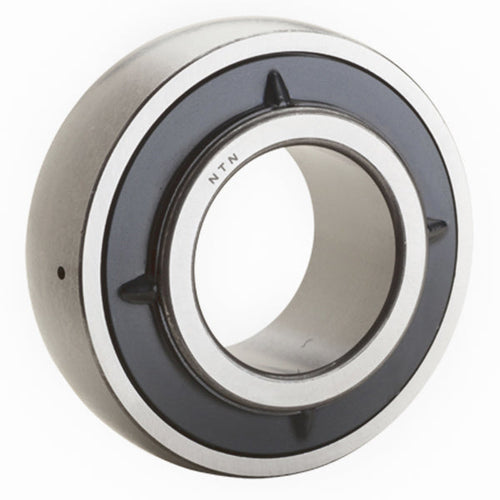

Insert Bearings UK308D1 with conical inner ring for clamp sleeve with dimensions 40x90x27 mm from the manufacturer NTN.
Advantages
- Long time
- Clearly the Environmental Error
- Quick and easy to assemble
- Lowered sound and vibration levels
Specification
| Product | UK308D1 NTN Insert Bearings 40x90x27 |
| Manufacturer |
NTN |
| Manufacturer's article number | UK308D1 |
| Radial gap | Standard |
| Conicity | 1:12 |
| Material Inner ring Outer ring Balls Sealing |
Cured steel Cured steel Cured steel Nitril rubber (NBR) |
| Temperature range |
-40 to +120 ° C |
| Sustainability Statically (C0) | 24.0 kn |
| Sustainability Dynamically (C) | 40.5 kn |
| Inner diameter (d) | 40 mm |
| Outer diameter (D) | 90 mm |
| Width outer ring (C) | 27 mm |
| Width inner ring (B) | 34 mm |
BEt draw (Prefix/suffix)
UK - Layers with conical hole, the inner ring symmetrically extended on both sides with exemption seal of NBR on both sides of the layer.
D1 - Lubricated.
Suitability
In scrolls for industrial inhabitants
Radial load +
Axial load + ↔
Torque load – –
Dynamic oblique position – –
Symbols
+++ Excellent, ++ good,+ satisfactory, - bad, - - inappropriate , ↔ double -acting
Uses
Since Insert Bearings If very versatile and cost -effective, they are widely used in the following buildings: • Agricultural machinery • Manufacture and packaging of food • Transport systems • Material management systems • Textile machines • Industrial stands • Special machines, eg. Car washes, gym equipment, go -karts.
Accessories
purchased separately (not included)
|
H 2308 SKF Clamp sleeve Ø35 mm |
|
Have 2310 HA2308 Klämshylsa Ø33.34 |
|
He 2308 SKF Clamp sleeve Ø31.75 mm |
|
HS 2308 NTN Clamp sleeve Ø34.92 mm |
Alternative designations
UK308D1, UK308-D1, UK308, UK-308-D1
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
Inga vanliga frågor (FAQ) tillgängliga.
Insert Bearings UK308D1 with conical inner ring for clamp sleeve with dimensions 40x90x27 mm from the manufacturer NTN.
Advantages
- Long time
- Clearly the Environmental Error
- Quick and easy to assemble
- Lowered sound and vibration levels
Specification
| Product | UK308D1 NTN Insert Bearings 40x90x27 |
| Manufacturer |
NTN |
| Manufacturer's article number | UK308D1 |
| Radial gap | Standard |
| Conicity | 1:12 |
| Material Inner ring Outer ring Balls Sealing |
Cured steel Cured steel Cured steel Nitril rubber (NBR) |
| Temperature range |
-40 to +120 ° C |
| Sustainability Statically (C0) | 24.0 kn |
| Sustainability Dynamically (C) | 40.5 kn |
| Inner diameter (d) | 40 mm |
| Outer diameter (D) | 90 mm |
| Width outer ring (C) | 27 mm |
| Width inner ring (B) | 34 mm |
BEt draw (Prefix/suffix)
UK - Layers with conical hole, the inner ring symmetrically extended on both sides with exemption seal of NBR on both sides of the layer.
D1 - Lubricated.
Suitability
In scrolls for industrial inhabitants
Radial load +
Axial load + ↔
Torque load – –
Dynamic oblique position – –
Symbols
+++ Excellent, ++ good,+ satisfactory, - bad, - - inappropriate , ↔ double -acting
Uses
Since Insert Bearings If very versatile and cost -effective, they are widely used in the following buildings: • Agricultural machinery • Manufacture and packaging of food • Transport systems • Material management systems • Textile machines • Industrial stands • Special machines, eg. Car washes, gym equipment, go -karts.
Accessories
purchased separately (not included)
|
H 2308 SKF Clamp sleeve Ø35 mm |
|
Have 2310 HA2308 Klämshylsa Ø33.34 |
|
He 2308 SKF Clamp sleeve Ø31.75 mm |
|
HS 2308 NTN Clamp sleeve Ø34.92 mm |
Alternative designations
UK308D1, UK308-D1, UK308, UK-308-D1
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
