LGMT 2/ 0.2 SKF Lubricating fat, 200g tube
225 kr
Specifikation

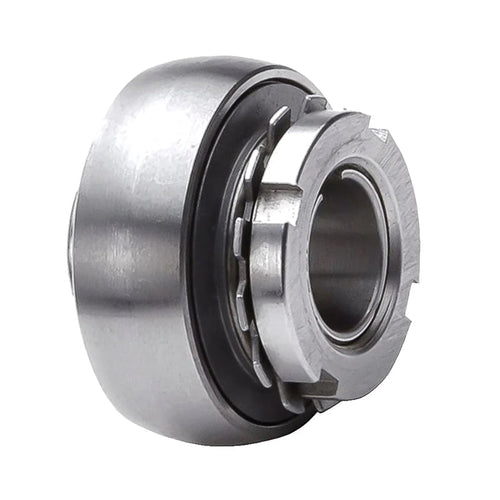

- Produktnamn: YSA 213/60-2F SKF Insert Bearings 60x120x27
- Tillverkare: SKF
- Tillverkarens artikelnummer: YSA 213/60-2F
Efterbeteckningar
-
2F
Frictional seal of NBR, extra unalloyed ejector washer, on both sides.
Insert warehouse YSA 213/60-2F with conical clamp sleeve with dimensions 60x120x27 mm from the manufacturer SKF.
Advantages
- Long time
- Clearly the Environmental Error
- Quick and easy to assemble
- Lowered sound and vibration levels
Specification
| Product | YSA 213/60-2f SKF Insert warehouse 60x120x27 |
| Manufacturer |
SKF |
| Manufacturer's article number |
YSA 213/60-2F |
| Radial gap | Standard |
| Material Inner ring Outer ring Balls Sealing Fat |
Layer Layer Layer Nitril rubber (NBR) VT307 (default) |
| Temperature range |
-40 to +120 ° C |
| Sustainability Dynamically (C) | 57.2 kn |
| Sustainability Statically (C0) | 40 kn |
| Border speed | 3 000 r/min |
| Inner diameter (d) | 60 mm |
| Outer diameter (D) | 120 mm |
| Width outer ring (C) | 27 mm |
| Width inner ring (B) | 65 mm |
BEt draw (Prefix/suffix)
YSA - Layers with conical hole, the inner ring symmetrically extended on both sides.
2f - Freemy sealing of NBR, extra undelivered return washer, on both sides of the layer.
Suitability
In scrolls for industrial inhabitants
Radial load +
Axial load + ↔
Torque load – –
Dynamic oblique position – –
Symbols
+++ Excellent, ++ good,+ satisfactory, - bad, - - inappropriate , ↔ double -acting
Uses
Since input layers are very versatile and cost -effective, they are widely used in the following buildings: • Agricultural machines • Manufacture and packaging of food • Transport system • Material management systems • Textile machines • Industrial stands • Special machines, eg. Car washes, gym equipment, go -karts.
Accessories
|
YSA 213-2FK SKF Insat layer (included) |
|
H 2313 SKF Clamp sleeve Ø60 mm (included) |
Alternative designations
YSA 213/60-2F, YSA213/60-2F, YSA213/602F, YSA-213-60-2F
Observera att de alternativa beteckningarna endast är referenser. För att säkerställa att du väljer rätt produkt, kontrollera alltid specifikationerna för produkten i dess beskrivning, såsom dimensioner och andra relevanta detaljer, innan du genomför ditt köp.
